Shimizu Metals stands out as a reliable manufacturer and supplier based in Pulau Ujong, Singapore, specializing in top-notch stainless steel products tailored for critical industrial needs. One of their standout offerings is **Stainless Steel 316Ti Tubing**, which is prized for its superior strength and resistance to high-temperature corrosion. By incorporating titanium into the standard 316 stainless steel, this grade effectively prevents carbide precipitation during welding and when exposed to high temperatures, ensuring it remains dependable for long-term use in harsh environments.
The composition of Stainless Steel 316Ti Tubing includes around 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a touch of titanium. The molybdenum enhances its resistance to pitting and crevice corrosion, especially in chloride-heavy settings, while the titanium stabilizers boost its durability at high temperatures. In terms of mechanical properties, 316Ti tubing offers impressive tensile and yield strength, outstanding toughness, and excellent creep resistance, even at temperatures reaching up to 870°C.
Tube Range : 6.35 mm OD To 101.6 mm OD Guage: 25 SWG – 10 SWG
Outer Diameter : 3.00 mm – 219.10 mm
Wall Thickness : 0.40 mm – 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A269 / ASTM SA269
Types : Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes
| SS | 316TI |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316TI |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 35 |
| Hardness | |
| Rockwell B (HR B) max | 75 |
| Brinell (HB) max | 205 |
Contact us to get a quick quote for your requirement.
This steel 316Ti tubing from Nakamura Stainless is thoroughly inspected for pitting and intergranular corrosion resistance, tensile strength, and hardness, apart from hydrostatic pressure testing for premium quality, and is accredited and approved to international specifications like ASTM, ASME, and ISO against each material test report.

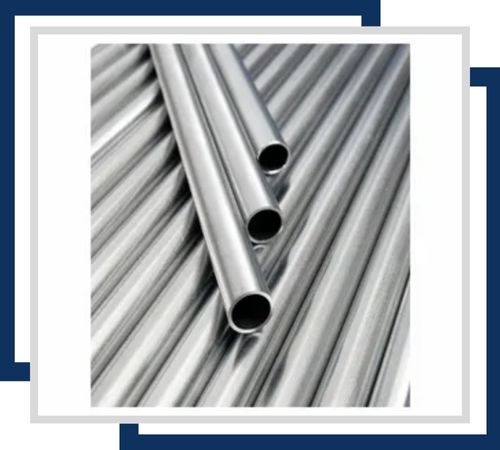

Stainless Steel 316Ti Seamless Tubing is known for its superior corrosion resistance, especially in high-temperature environments. Typically available in sizes ranging from 1/8” to 12” OD, it offers excellent mechanical properties and smooth surface finishes. Ideal for applications requiring high precision and reliability.
Stainless Steel 316Ti Welded Tubing combines excellent corrosion resistance with durability. Available in sizes from 1/8” to 24” OD, this tubing is cost-effective and versatile for various applications. It is particularly suitable for industries where high resistance to oxidizing acids is essential.

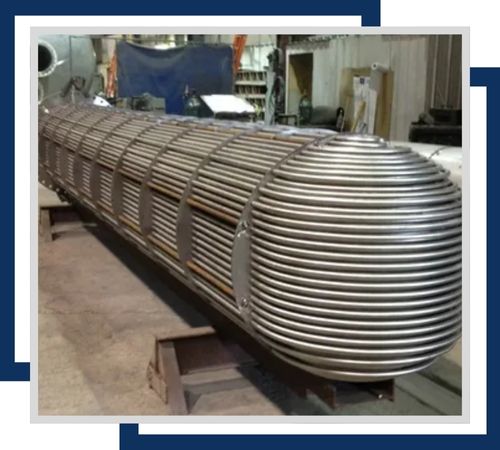

Stainless Steel 316Ti Heat Exchanger Tubes are designed for optimal thermal conductivity and corrosion resistance. These tubes come in sizes ranging from 1/4” to 2” OD, making them perfect for heat exchangers in chemical processing and power generation industries. They ensure efficient heat transfer and long service life.

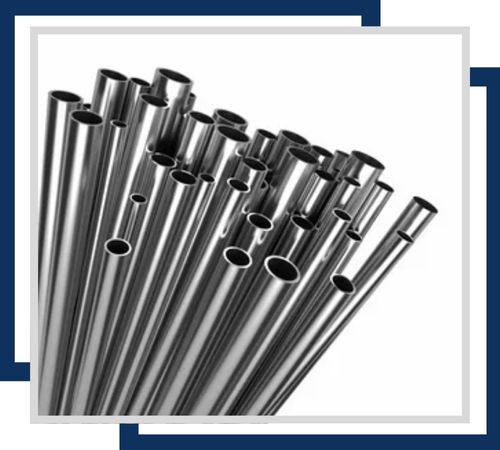

Stainless Steel 316Ti Instrumentation Tubing offers superior corrosion resistance and precision. Available in sizes from 1/16” to 1” OD, it is ideal for high-pressure and high-temperature applications in instrumentation and control systems. Ensures reliable performance and accuracy in critical applications.
Stainless Steel 316Ti Boiler Tubes are engineered for high temperature and pressure conditions. Sizes range from 1/2” to 5” OD, providing excellent resistance to oxidation and corrosion. These tubes are essential for maintaining efficiency and longevity in boiler systems

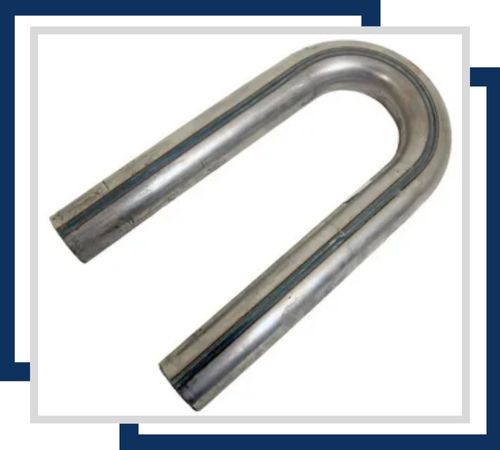

Stainless Steel 316Ti U-Tubes are designed for heat exchangers and boiler systems where space-saving is crucial. Available in sizes from 1/4” to 1” OD, they offer exceptional corrosion resistance and flexibility in design. Ideal for applications requiring compact and efficient thermal transfer solutions
Stainless Steel 316Ti Condenser Tubes provide excellent corrosion resistance and thermal conductivity. Sizes range from 1/4” to 2” OD, making them suitable for condensers in power plants and HVAC systems. Ensures efficient condensation and long-term performance
Stainless Steel 316Ti Fin Tubes enhance heat transfer efficiency while maintaining high corrosion resistance. Available in sizes from 1/4” to 1-1/2” OD, these tubes are used in heat exchangers, condensers, and evaporators. The finned design maximizes surface area for optimal thermal performance.
You’ll find Stainless Steel 316Ti Tubing in a variety of sectors, including chemical and petrochemical industries, marine applications, power generation, and pharmaceuticals. Its robust nature allows it to handle aggressive chemical exposure and high thermal stress, making it ideal for heat exchangers, pressure vessels, furnace components, flue gas scrubbers, and pipelines in corrosive environments. Thanks to its durability and ease of welding, it promises long-lasting performance, even under the toughest industrial conditions.
