Nakamura Stainless, located in Pulau Ujong, Singapore, is a reliable manufacturer and supplier of high-quality stainless steel products, including stainless steel 305 tubing. This tubing provides excellent corrosion resistance and good mechanical strength, making it suitable for many industrial and commercial uses. Stainless steel 305 has a higher carbon content than 304, which improves its strength while keeping good resistance to oxidation and corrosion. Nakamura Stainless focuses on precise manufacturing and strict quality control to deliver dependable 305 tubing for demanding environments in the automotive, chemical processing, and construction industries.
Stainless steel 305 tubing usually contains 18 to 20% chromium and 8 to 10% nickel, giving it good tensile strength and durability. It performs well in moderately aggressive environments and keeps its structural integrity under mechanical stress.
Type: Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes
Grades: TP304, TP304L, TP304H
Size: 1/8” NB to 5” NB, 1/4” OD to 5” OD sizes stainless steel seamless tubes also available
Length: Up to 6 meters, custom cut lengths
Thickness: 1mm to 13mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Finish: No.1 Pickled Finish, No.4 finish, BA Finish, Electropolished Pipes
Delivery Condition: Hot Finish, Cold Finish, Bright Annealed, Polished, Annealed and Pickled, Passivated, Stress Relived
| Element | Content (%) |
|---|---|
| Iron, Fe | 67 |
| Chromium, Cr | 18 |
| Nickel, Ni | 12 |
| Manganese, Mn | ≤ 2 |
| Silicon, Si | ≤ 1 |
| Carbon, C | 0.12 |
| Phosphorous, P | 0.045 |
| Sulfur, S | 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 585 MPa | 84800 psi |
| Tensile strength, yield (@0.2%) | 260 MPa | 37700 psi |
| Modulus of elasticity | 193 GPa | 28000 ksi |
| Shear modulus | 86 GPa | 12500 ksi |
| Elongation at break (in 50 mm) | 50 | 50 |
| Hardness, Brinell | 80 | 80 |
| Hardness, Knoop (converted from Brinell hardness) | 97 | 97 |
| Hardness, Rockwell B (converted from Brinell hardness) | 45 | 45 |
| Hardness, Vickers (converted from Brinell hardness) | 82 | 82 |
Contact us to get a quick quote for your requirement.
We tests all Stainless Steel 305 Tubing to the international quality standard. Every batch is tested for composition, mechanical properties, and corrosion resistance. The company provides certification for material traceability that complies with ASTM, EN, and other relevant standards to ensure product excellence and reliability.
This tubing comes in a variety of sizes, typically ranging from 1/8″ to 4″ in diameter. Known for its exceptional corrosion resistance and smooth finish, it is ideal for applications requiring high durability and reliability.

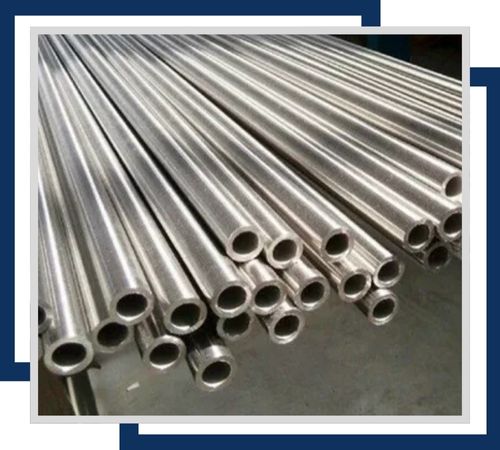

Available in sizes from 1/4″ to 6″ in diameter, this tubing features a welded seam for structural strength. It offers excellent corrosion resistance and is commonly used in both industrial and architectural applications.
Designed for heat transfer efficiency, these tubes are generally sized from 1/2″ to 2″ in diameter. They exhibit high resistance to corrosion and are used in heat exchangers for various industrial processes.
Stainless Steel 305 Instrumentation Tubing**: Available in sizes ranging from 1/16″ to 1/2″ in diameter, this tubing is designed for precise instrumentation applications. It offers superior corrosion resistance and is ideal for use in harsh environments and critical measurement systems.
Typically available in sizes from 1″ to 4″ in diameter, these tubes are engineered to withstand high temperatures and pressures. They are highly corrosion-resistant and suitable for boiler systems.
Usually ranging from 1/2″ to 2″ in diameter, these U-shaped tubes are designed for applications such as heat exchangers and condensers. They offer strong corrosion resistance and flexibility in heat transfer systems.
Available in sizes from 1/2″ to 3″ in diameter, these tubes are optimized for use in condensers. They provide excellent resistance to corrosion and scaling, making them ideal for high-performance cooling systems.

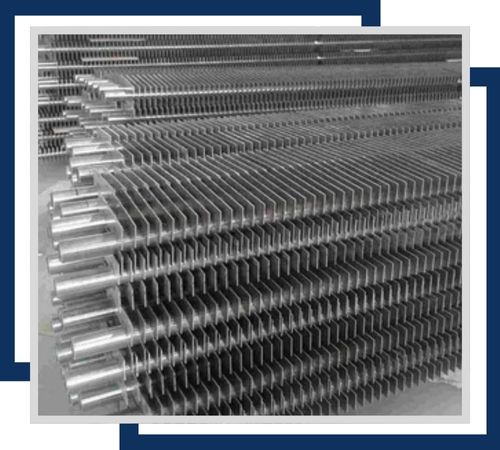

Typically sized from 1″ to 2″ in diameter, these tubes feature finned surfaces for enhanced heat transfer. They are highly resistant to corrosion and are used in various heat exchange and cooling applications.
Stainless steel 305 tubing is often used in automotive exhaust systems, heat exchangers, architectural structures, and chemical processing equipment. Its blend of strength, corrosion resistance, and formability makes it a popular choice for applications needing both durability and versatility.
