Nakamura Stainless, located in Pulau Ujong, Singapore, is a trusted manufacturer and supplier of high-quality stainless steel products, including stainless steel 316 tubing. This tubing is known for its strong resistance to corrosion and mechanical strength. It is often used in demanding settings such as marine, chemical processing, food production, and pharmaceutical industries. Stainless steel 316 contains molybdenum, which greatly improves resistance to pitting and crevice corrosion in chloride-rich environments. Nakamura Stainless ensures precise manufacturing and strict quality control, providing tubing that meets international standards for durability and performance.
Stainless steel 316 tubing consists of 16-18% chromium, 10-14% nickel, and 2-3% molybdenum. This combination offers outstanding resistance to corrosion, particularly in acidic and salty conditions. The tubing has a tensile strength of 515-700 megapascals and maintains its mechanical integrity in both high and low temperatures. It also has good weldability and formability, making it suitable for complex piping systems and hygienic applications.
Tube Range : 6.35 mm OD To 101.6 mm OD Guage: 25 SWG – 10 SWG
Outer Diameter : 3.00 mm – 219.10 mm
Wall Thickness : 0.40 mm – 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A213 / ASTM SA213
Types : Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubing
| SS | 316 |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 95 |
| Brinell (HB) max | 217 |
Contact us to get a quick quote for your requirement.
We offers high quality stainless steel 316 tubing, rigorously tested for durability, corrosion resistance and accuracy. Each tube undergoes extensive testing, including mechanical and chemical analysis, to ensure it meets industry standards. Certificates of conformity (CoC) are issued, confirming that products meet all specified requirements for performance and safety.

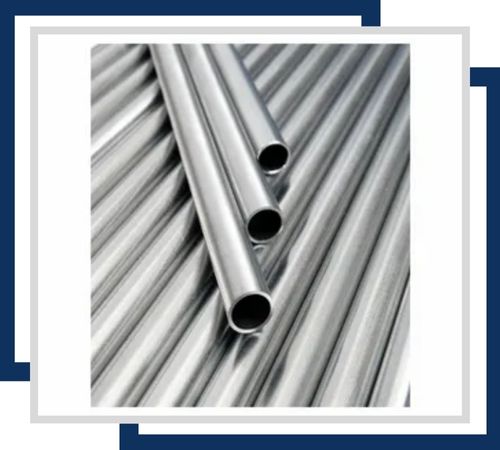

This tubing is available in sizes ranging from 1/8″ to 12″ in diameter and is known for its excellent corrosion resistance, particularly in marine and chemical environments. The seamless construction ensures high strength and reliability.

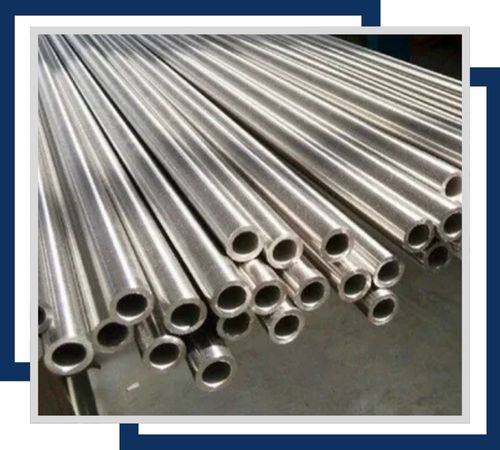

Typically offered in sizes from 1/4″ to 8″ in diameter, this tubing is fabricated by welding stainless steel sheets. It provides good corrosion resistance, making it suitable for structural applications and chemical processing.

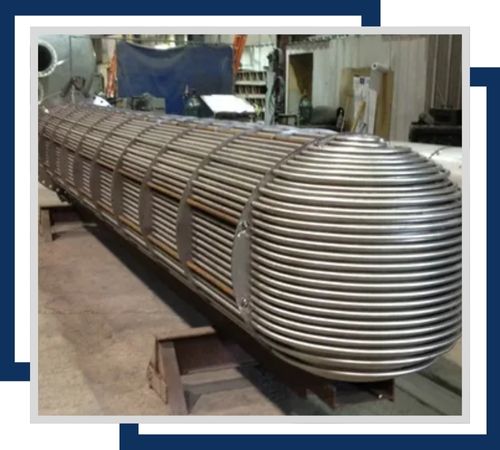

Designed for heat exchange applications, this tubing generally comes in sizes from 1/2″ to 2″ in diameter. It boasts superior corrosion resistance and thermal conductivity, ideal for use in heat exchangers and condensers.
Available in sizes from 1/16″ to 1″ in diameter, this tubing is used in high-pressure and precision applications. It offers excellent resistance to corrosion and is ideal for instrumentation and process control systems.
Typically found in sizes from 1″ to 5″ in diameter, these tubes are designed for high-temperature and high-pressure environments. They provide strong corrosion resistance and durability for boiler systems.

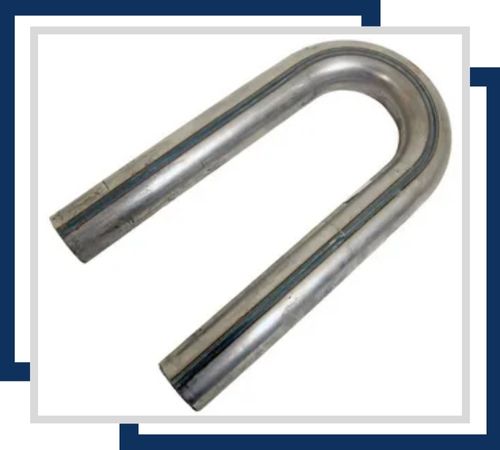

Used in heat exchangers and other applications requiring a U-shaped tube, sizes range from 1/2″ to 4″ in diameter. They offer high resistance to corrosion and are designed for effective thermal performance.

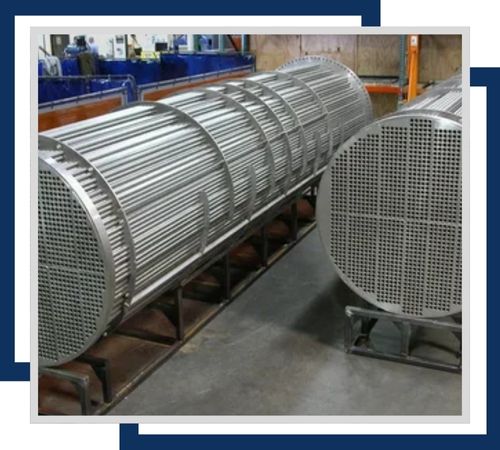

This type comes in sizes from 1/2″ to 2″ in diameter and is used in condensers for its excellent corrosion resistance and durability in cooling applications. Ideal for heat transfer and cooling systems.

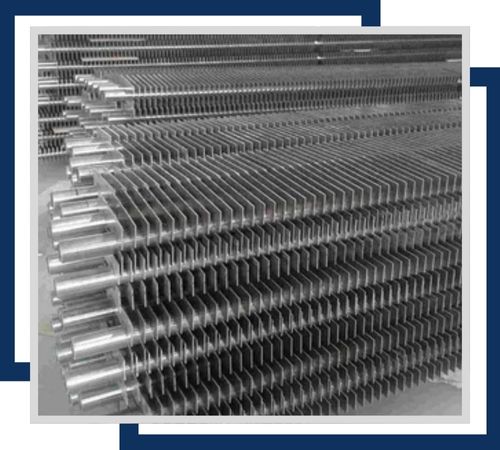

Typically available in diameters from 1/2″ to 2″, these tubes have fins attached to enhance heat transfer efficiency. They are highly resistant to corrosion and are used in heat exchangers and other cooling systems.
Stainless steel 316 tubing is often used in situations that need high corrosion resistance and clean, smooth internal surfaces. Common applications include heat exchangers, fluid transport lines, food processing equipment, marine fittings, and pharmaceutical piping systems. Its ability to resist chemical damage and perform well in harsh conditions makes it ideal for industries with strict hygiene and safety rules. With great durability and a long service life, 316 tubing is a reliable option for critical operations.
