Nakamura Stainless is a well-respected manufacturer and supplier of top-notch stainless steel products based in Pulau Ujong, Singapore, and is also recognized as a reliable Stainless Steel 201 Tubing manufacturer in Dubai, UAE. The company has built a reputation for precision engineering, durability, and consistent quality, serving industries that demand high-performance materials for construction, infrastructure, marine, and industrial applications. With state-of-the-art production facilities and rigorous quality standards, Nakamura Stainless guarantees corrosion-resistant, cost-effective, and long-lasting solutions. Their expertise and global presence make them a go-to partner for clients looking for dependable stainless steel tubing and components around the world.
Stainless Steel 201 Tubing is mainly made up of chromium (16–18%), manganese (5.5–7.5%), and nickel (3.5–5.5%), along with trace amounts of nitrogen, carbon, and phosphorus. This unique blend offers impressive strength, toughness, and corrosion resistance at a budget-friendly price. It boasts a tensile strength of about 515 MPa and a yield strength of roughly 275 MPa. Thanks to its excellent formability, ductility, and moderate oxidation resistance, Stainless Steel 201 Tubing is a popular choice in settings that require lightweight yet durable stainless steel solutions.
| Standard | ASTM, AISI, GB, JIS, customers’ requests available |
| Size | Round Tube: OD: 16-119mm or customized |
| Thickness | 0.25mm-3.0mm |
| Length | 6m or according to customers’ request |
| Sample | Free sample is available, but freight should be paid by you |
| Tolerance | Outer diameter: ±0.2mm |
| Thickness: ±0.05mm | |
| Length: ±0.5mm | |
| Ends | In plain end or bevelled ends or as your requirements |
| Welding Line Type | ERW (Electrical Resistance Weld) |
| Finishing | A. Sanded |
| B. Gloss #400,Mirror #600 – #1000 | |
| C. Brushed | |
| D. Wood Grain | |
| E. Embossed, Threaded | |
| Application | Decorations, constructions, food industry, etc. |
| Certification | ISO, SGS |
| Round Pipe Size | 16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm |
| Square Pipe Size | 17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm |
| Rectangle Pipe Size | 10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm |
| Thickness | exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm |
| Length | 6m or according to customer’s request |
| Outer diameter | 6.35-219mm |
| Tolerance | Outer diameter :±0.2mm |
| Thickness :±0.02mm | |
| Length :±0.5mm | |
| Process method | Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine Sand-blasting machine, etc |
| Origin | West Europe / Japanese / Indian / USA / Korean / American / European |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Element | Content (%) |
|---|---|
| Iron, Fe | 72 |
| Chromium, Cr | 16.0 – 18.0 |
| Manganese, Mn | 5.50 – 7.50 |
| Nickel, Ni | 3.50 – 5.50 |
| Silicon, Si | 1.0 |
| Nitrogen, N | 0.25 |
| Carbon, C | 0.15 |
| Type | Yield Strength 0.2% offset (KSI) | Tensile Strength (KSI) | % Elongation (2″ Gauge length) | Hardness Rockwell |
|---|---|---|---|---|
| SS 201 Ann | 38 min. | 75 min. | 40% min. | HRB 95 max. |
| SS 201 ¼ Hard | 75 min. | 125 min. | 25.0 min. | 25 – 32 HRC (typical) |
| SS 201 ½ Hard | 110 min. | 150 min. | 18.0 min. | 32 – 37 HRC (typical) |
| SS 201 ¾ Hard | 135 min. | 175 min. | 12.0 min. | 37 – 41 HRC (typical) |
| SS 201 Full Hard | 145 min. | 185 min. | 9.0 min. | 41 – 46 HRC (typical) |
Contact us to get a quick quote for your requirement.
We provides stainless steel 201 tubing with proper quality assurance by way of strict testing and certification. Every product undergoes thorough inspections in tensile, hardness, and corrosion resistance tests that are all international standards like ASTM and ISO. Being certified for reliability and performance, these tubes ensure durability, safety, and compliance for different industrial and commercial applications.
Stainless Steel 201 Seamless Tubing is available in sizes ranging from 1/8″ to 14″ OD. It is known for its excellent corrosion resistance and high mechanical strength. Ideal for high-pressure applications, it ensures a smooth, uninterrupted flow.
Stainless Steel 201 Welded Tubing comes in sizes from 1/8″ to 24″ OD. It offers good corrosion resistance and weldability. Suitable for structural applications and fluid transportation, it is cost-effective compared to seamless tubing.

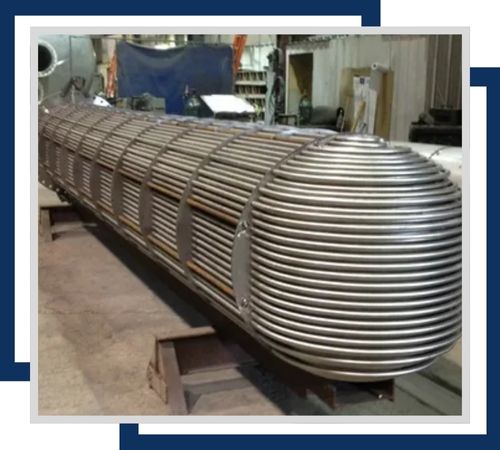

Stainless Steel 201 Heat Exchanger Tubes are available in sizes from 1/8″ to 2″ OD. These tubes exhibit superior corrosion resistance and thermal conductivity. They are essential in applications requiring efficient heat transfer.
Stainless Steel 201 Instrumentation Tubing is available in sizes from 1/8″ to 1″ OD. It provides excellent corrosion resistance and precise dimensions. Used in control and measurement devices, it ensures accurate performance.
Stainless Steel 201 Boiler Tubes come in sizes from 1/2″ to 5″ OD. They offer high corrosion resistance and strength under high temperatures and pressures. These tubes are crucial for efficient boiler operations in various industries
Stainless Steel 201 U-Tubes are available in sizes from 1/4″ to 2″ OD. They exhibit excellent corrosion resistance and are formed in a U-shape for heat exchanger applications. Ideal for compact design requirements in heat transfer systems.

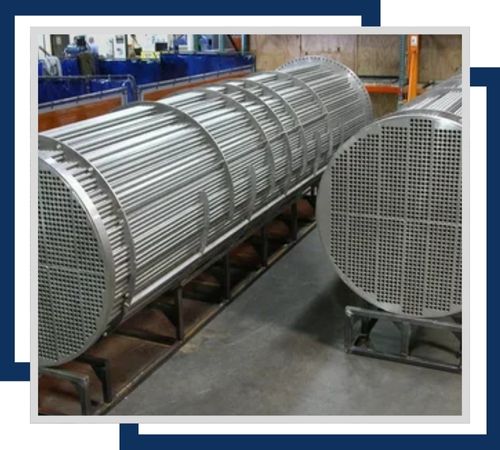

Stainless Steel 201 Condenser Tubes are available in sizes from 1/4″ to 1″ OD. These tubes provide superior corrosion resistance and thermal efficiency. Used in condensers to effectively transfer heat and condense vapors.
Stainless Steel 201 Fin Tubes come in sizes from 1/2″ to 3″ OD with varying fin heights. They offer excellent corrosion resistance and enhanced heat transfer surface area. Ideal for applications needing improved thermal efficiency
This type of tubing is widely used in architectural and decorative projects because of its superb surface finish and durability. You’ll often find it in automotive trims, kitchen equipment, food processing units, railway coaches, and lightweight structural components. Its strength, affordability, and wear resistance make it perfect for tubing in furniture, appliances, and industrial piping systems. Plus, it performs well in environments with moderate corrosion exposure, ensuring long-lasting durability. Its versatility and the right balance of strength and cost make it a favored option across a variety of industries.
