Nakamura Stainless, located in Pulau Ujong, Singapore, is a well-regarded maker and supplier of high-quality stainless steel products, including stainless steel 316Ti forged fittings. These fittings are designed for applications that need great corrosion resistance, especially in high-temperature settings. Stainless steel 316Ti is a titanium-stabilized version of 316 that provides better resistance to intergranular corrosion after welding or exposure to high temperatures. Nakamura Stainless makes these fittings with care and follows strict quality standards to ensure reliable performance in important industries like chemical processing, marine, and power generation.
Stainless steel 316Ti forged fittings contain 16-18% chromium, 10-14% nickel, 2-3% molybdenum, and a small amount of titanium. This small amount of titanium stabilizes the alloy and stops carbide precipitation during welding. These fittings usually have tensile strength between 500 and 750 megapascals and maintain strong mechanical properties at temperatures up to 870°C. The molybdenum improves resistance to pitting and crevice corrosion, while the titanium boosts high-temperature stability and weldability.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Forged Fittings Items 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 316TI UNS (S31635), DIN (1.4571)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We tested and certified Stainless Steel 316Ti Forged Fittings. All the products are inspected, including dimensional checks, material analysis, and strength testing. Every product is certified to international standards, ensuring high performance, durability, and reliability for critical applications in different industries.
Ideal for high-temperature applications, these fittings offer excellent corrosion resistance and are typically available in sizes ranging from 1/2″ to 4″. They are used in industries like chemical processing and oil refineries.

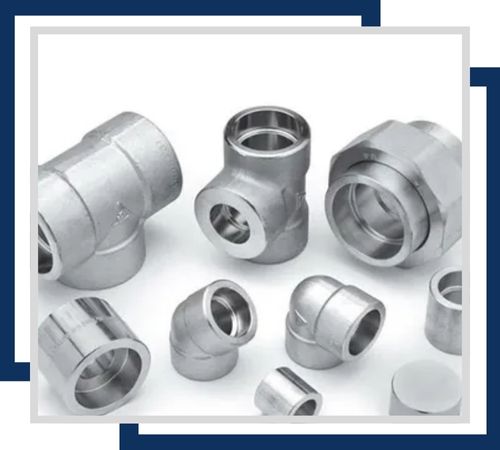

Known for superior corrosion resistance, especially against sulfuric and phosphoric acids, these fittings come in various sizes from 1/8″ to 4″. They are commonly used in marine and industrial environments.
This elbow fitting allows for a smooth 45-degree change in pipe direction and is available in sizes from 1/2″ to 6″. It provides excellent resistance to corrosion and is used in high-pressure applications.
This tee fitting allows for branching out of the main pipe, available in sizes from 1/2″ to 6″. It offers exceptional resistance to corrosion and is used in a variety of piping systems.
Used to connect two pieces of pipe, this half coupling is available in sizes ranging from 1/4″ to 6″. It is highly resistant to corrosion and suitable for high-temperature environments.

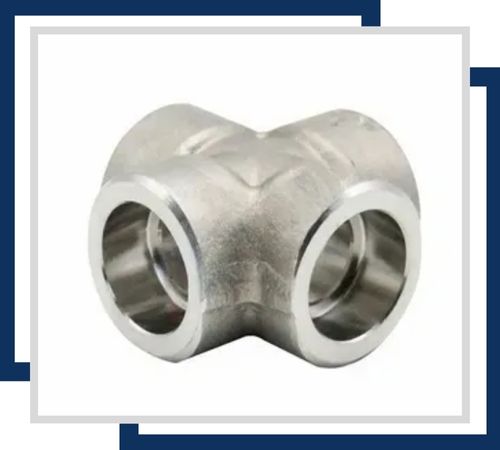

This fitting provides a cross junction, available in sizes from 1/2″ to 4″. It ensures high resistance to corrosion and is used in complex piping arrangements.
Stainless steel 316Ti forged fittings are used in situations where they will be exposed to chlorides, acids, or high heat. Common applications include piping systems in chemical plants, power stations, marine settings, heat exchangers, and high-temperature processing units. These fittings are perfect for welded systems that need long-lasting durability along with resistance to corrosion and thermal breakdown. Their strong mechanical performance and excellent corrosion resistance make them a reliable choice for critical operations in harsh environments.
