Nakamura Stainless is a reputable manufacturer and supplier located in Pulau Ujong, Singapore, specializing in top-notch stainless steel products that are celebrated for their durability, precision, and adherence to international quality standards. With a robust global footprint, the company has also made a name for itself as a premier manufacturer of Stainless Steel 304H Forged Fittings in Dubai, UAE. Thanks to cutting-edge technology and a talented workforce, Nakamura Stainless provides reliable, corrosion-resistant, and high-strength fittings tailored to meet the rigorous demands of industries like oil and gas, petrochemicals, power generation, and construction across various markets around the globe.
The Stainless Steel 304H Forged Fittings produced in Dubai, UAE, primarily consist of iron, with 18–20% chromium and 8–10.5% nickel, plus a higher carbon content that enhances strength at elevated temperatures. These fittings boast excellent oxidation and corrosion resistance, along with impressive toughness and durability. In terms of mechanical properties, they offer a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. Their remarkable creep resistance and structural stability make them ideal for heavy-duty applications that require outstanding performance in challenging environments.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
The rigorous testing and certifications of Nakamura Stainless help ensure that their Stainless Steel 304H Forged Fittings meet the finest quality standards. Every product, whether in raw material analysis or dimensional checks and pressure tests, is carefully tested. With authentications from respected authorities, it adheres strictly to international standards while ensuring reliability and durability and great performance in a critical application.

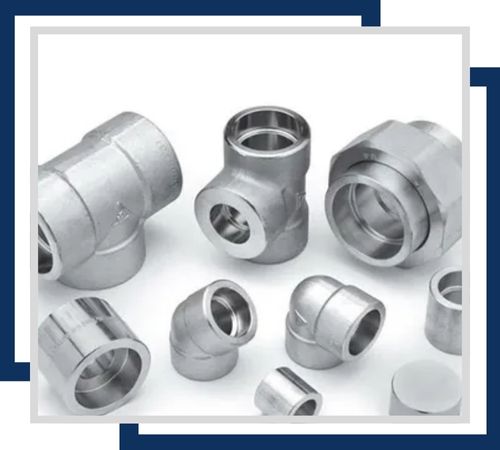

These fittings are available in sizes from 1/8″ to 4″ and offer reliable, leak-free connections in high-pressure systems. They are commonly used in petrochemical, power generation, and oil and gas industries.
Threaded fittings, ranging from 1/8″ to 4″, provide ease of installation and maintenance. Suitable for low-pressure applications, they are widely used in plumbing, heating, and cooling systems.
These elbows, available in sizes from 1/8″ to 4″, allow for smooth directional flow changes. They are ideal for piping systems requiring high-strength connections and reduced flow resistance.

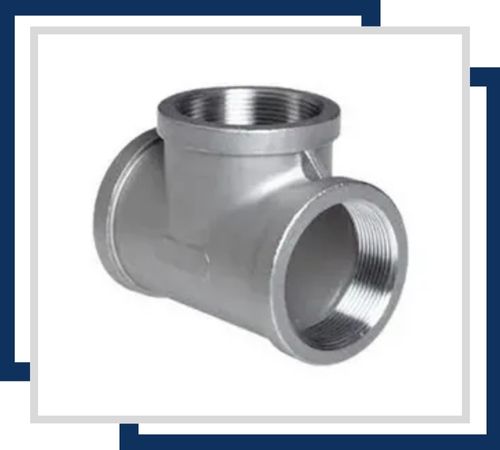

Threaded tees, in sizes ranging from 1/8″ to 4″, branch off the main line in a piping system. They provide reliable performance in various industrial and commercial applications.
These couplings, available in sizes from 1/8″ to 4″, join two pipes or fittings. They offer easy assembly and disassembly, making them suitable for maintenance and repair work.

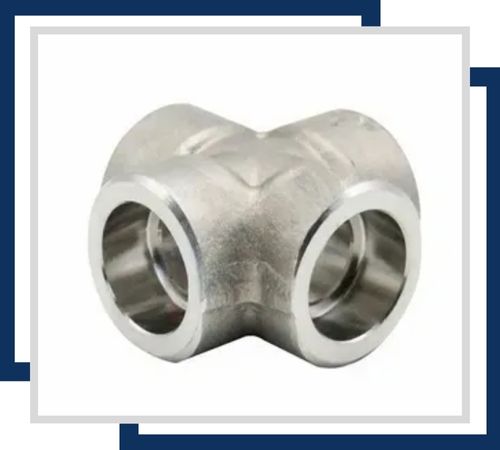

Socket weld crosses, ranging from 1/8″ to 4″, are designed to connect four pipes at a single junction. They are used in high-pressure applications where a strong, leak-proof connection is essential.
Stainless Steel 304H Forged Fittings are extensively utilized in industries that require high strength and resilience against extreme conditions. In the oil and gas sector, they are commonly found in pipelines and refinery systems. Petrochemical facilities use them for transporting corrosive fluids and gases. The power generation industry counts on their heat resistance for boiler and heat exchanger systems. Moreover, they are essential in chemical processing, pressure vessels, and construction projects where reliability and longevity are paramount. Their ability to endure stress, corrosion, and high temperatures makes them incredibly versatile for various industrial operations.
