Home > Stud Bolts > Stainless Steel 316 Stud Bolts
Nakamura Stainless is a top manufacturer and supplier of high-quality stainless steel products, located in Pulau Ujong, Singapore. Known for its engineering skills and focus on quality, Nakamura provides reliable fastening solutions for tough industrial settings. Among its main products, Stainless Steel 316 Stud Bolts stand out for their excellent corrosion resistance, particularly in marine and chemical settings. Built to meet strict global standards, these stud bolts are perfect for situations that demand strength, durability, and resistance to harsh corrosive factors.
Stainless Steel 316 Stud Bolts consist of iron, 16-18% chromium, 10-14% nickel, and 2-3% molybdenum. The addition of molybdenum greatly improves resistance to pitting and crevice corrosion in environments rich in chloride. These bolts have a tensile strength of about 515-620 MPa and a yield strength of 205-275 MPa, with an elongation of around 30-40%. Their strong mechanical properties and resistance to corrosion, oxidation, and high temperatures make them well-suited for critical fastening applications in harsh conditions.
| Specifications | IS, BS, ASTM |
| Standard | ASTM / ASME – A/ SA 193 |
| Length | 3 mm to 200 mm |
| Size | M02 to M33 |
| Type | Flat Washers, Finishing Washers, Tab Washers, Conical Washers, Special Washers, Belleville Washer, Bonded Sealing Washer, Countersunk Finishing Washer, Dock Washer, Fender Washer, Lock Washer, Neoprene Washer, Square Bevel Washer, Star Washer |
| Element | SS 316 |
| Ni | 10.0 – 14.0 |
| C | 0.035 |
| Mn | 2.0 max |
| P | 0.045 max |
| S | 0.030 max |
| Si | 0.75 max |
| Cr | 16.0 – 18.0 |
| Mo | 2.00 – 3.00 |
| N | 0.10 |
| Element | SS 316 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Rockwell B (HR B) max Hardness | 95 |
| Brinell (HB) max Hardness | 217 |
Contact us to get a quick quote for your requirement.

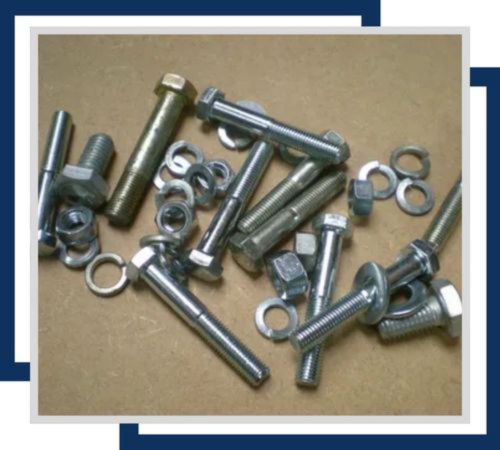

316 SS heavy stud bolts provide exceptional strength and corrosion resistance, ideal for high-stress and harsh environments. Perfect for industrial, marine, and chemical applications requiring durable and reliable fastening solutions.

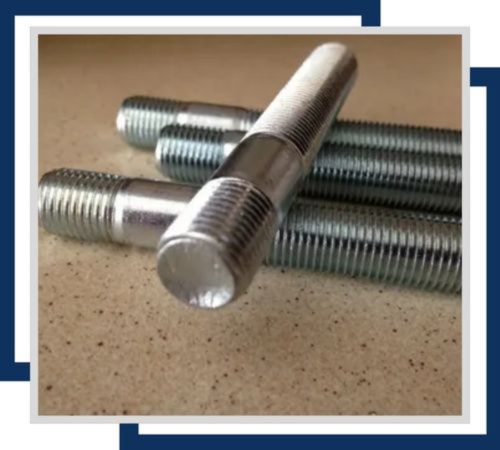

Stainless Steel 316 threaded stud bolts offer excellent corrosion resistance and strength, making them ideal for secure fastening in marine, chemical, and industrial applications, ensuring durability and reliability in tough conditions.

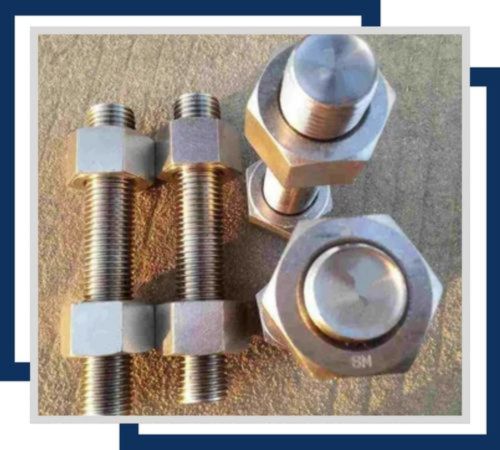

Stainless Steel 316 tap end stud bolts are designed for robust and reliable connections. Their excellent corrosion resistance and strength make them ideal for marine and industrial applications with high-stress environments.
We ensure quality products like Stainless Steel 316 Stud Bolts that always perform. We test these through various procedures, including hardness testing, spectro analysis, PMI, and flaring tests. In addition to this, we conduct micro and macro tests, pitting resistance, and IGC tests to ensure superior quality in every material delivered. Along with our test protocols, we give full documentation, with all the required commercial invoices, net and gross weight packaging lists with box numbers, and labels. Our legalized or attested Certificate of Origin coupled with Third-Party Inspection certificates ensures that all our products are of top quality and give our customers the greatest satisfaction.
