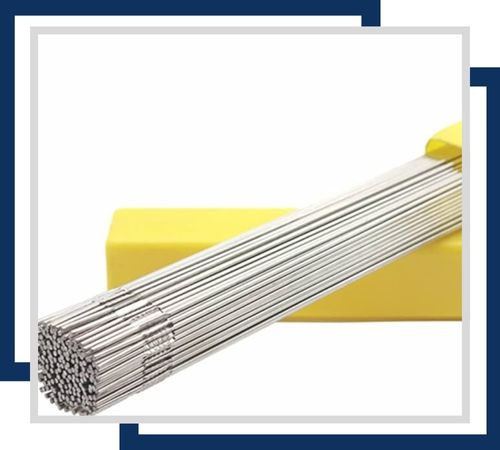

Nakamura Stainless, a reliable manufacturer and supplier based in Pulau Ujong, Singapore, provides a top-notch selection of stainless steel welding consumables for various industries. The AWS Class ER316/316L MIG and TIG Filler Welding Wire and Rod is specifically crafted for welding molybdenum-bearing stainless steels. Renowned for its outstanding corrosion resistance, especially against chlorides and reducing acids, it ensures high-quality welds with a minimal chance of cracking. The “L” grade, which has a lower carbon content, boosts resistance to intergranular corrosion, making it durable in tough environments. These filler wires and rods are commonly used in critical fabrication across the chemical, marine, and food sectors.
The AWS Class ER316/316L MIG and TIG Filler Welding Wire and Rod is made up of chromium (18–20%), nickel (11–14%), and molybdenum (2–3%), along with controlled amounts of manganese, silicon, and carbon. The addition of molybdenum enhances resistance to pitting and crevice corrosion, while the lower carbon content in ER316L improves resistance to carbide precipitation. These fillers boast high tensile and yield strength, excellent toughness, and strong oxidation resistance up to 870°C. Their well-balanced chemistry guarantees ductility, durability, and crack-free welds, making them perfect for welding 316 and 316L stainless steel in highly corrosive and high-temperature environments.
| Classification | AWS A5.9, ER316/316L |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER316/316L MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.03 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 1.0-2.5 | 0.30-0.65 | 0.03 | 0.03 | 0.75 |
| Yield, kpsi: | 80 |
| Tensile Strength, kpsi: | 55 |
| Elongation%, min: | 40 |
Contact us to get a quick quote for your requirement.
ER316/316H MIG filler wire provides excellent corrosion resistance and strength, ideal for welding stainless steels in chemical, petrochemical, and marine applications, with high durability in harsh environments.
ER316/316H TIG filler wire ensures superior corrosion resistance and strength for precise welding of stainless steels, suitable for high-temperature environments in industries like chemical processing and aerospace.
ER316/316H TIG filler rod offers excellent resistance to corrosion and high temperatures, ideal for welding and repairing stainless steel components in demanding applications, including chemical and marine industries.
AWS class 316/316L for MIG and TIG welding wire or rod requires careful packing with high standard materials for safe delivery in order to prevent defect and contamination during shipping. Although we always try to go for on-time shipment. We prioritize the satisfaction of our customers through effective transportation options. In this effort all vital information concerning the product is disclosed to the customer through the accompanying data upon delivery, so they may rest assured of the transparency facility.
AWS class ER316/316L MIG and TIG filler welding wires and rods are widely used for stainless steel welding in applications. Requiring high corrosion resistance and excellent weldability. ER316 is ideal for chloride and chemical environments. Making it suitable for industries such as petrochemical, marine, and food processing. ER316L, with its low carbon content, is preferred for welding thin materials and applications where intergranular corrosion resistance is critical Both fillers are used in tanks, pipes, pressure vessels and other manufacturing and and repair to ensure strong, durable welds that can withstand harsh and damaging conditions.
