Nakamura Stainless, located in Pulau Ujong, Singapore, manufactures and supplies high-performance stainless steel products, including stainless steel 330 fasteners. These fasteners are known for their exceptional resistance to high temperatures and oxidation. They are designed for extreme conditions and offer excellent mechanical strength and corrosion resistance in both oxidizing and carburizing environments. Nakamura Stainless maintains precision manufacturing and strict quality control, providing fasteners that meet the requirements of industries such as heat treatment, metallurgy, petrochemical processing, and furnace construction, where thermal stability is essential.
Stainless steel 330 fasteners contain about 35-37% nickel and 17-20% chromium, along with additions of silicon and iron. This high-nickel, high-chromium alloy provides excellent resistance to oxidation, thermal fatigue, and carburization at temperatures up to 1150°C. The fasteners remain strong, with a tensile strength of around 550-750 megapascals, and maintain their structural integrity under severe thermal stress. The alloy’s composition also offers good resistance to scaling and keeps corrosion resistance in both reducing and oxidizing environments, making it suitable for high-temperature industrial applications.
|
Material |
Specification |
Standards |
Length |
Size
|
|
330 Stainless Steel Fasteners
|
IS
BS
ASTM
|
DIN, ISO, JIS, GB, IS, BS, ASTM |
3 mm to 200 mm
|
M 02 to M 160
|
| Component | Wt. % |
| C | Max 0.08 |
| Cr | 19 |
| Fe | 42 |
| Mn | Max 2 |
| Ni | 36 |
| P | Max 0.04 |
| S | Max 0.03 |
| Si | Max 1.13 |
| Hardness, Brinell | 139 | 139 | Converted from Rockwell B hardness. |
| Hardness, Knoop | 155 | 155 | Converted from Rockwell B hardness. |
| Hardness, Rockwell B | 80 | 80 | |
| Hardness, Vickers | 153 | 153 | Converted from Rockwell B hardness. |
| Tensile Strength, Ultimate | 585 MPa | 84800 psi | |
| Tensile Strength, Yield | 290 MPa | 42100 psi | at 0.2% offset |
| Elongation at Break | 45 % | 45 % | in 50 mm |
| Modulus of Elasticity | 197 GPa | 28600 ksi | at 21°C, 179 GPa at 315°C, 164 GPa at 540°C, 145 GPa at 760°C, 134 GPa at 870°C, 124 GPa at 980°C |
| Charpy Impact | 325 J | 240 ft-lb | Annealed |
Contact us to get a quick quote for your requirement.

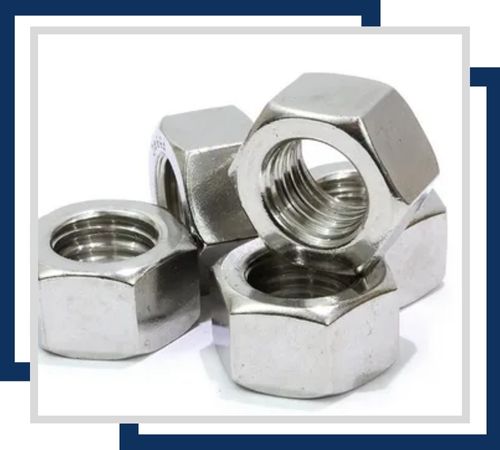

Stainless Steel 330 Nuts provide strong corrosion resistance and are used with 330 bolts. They come in sizes from M6 to M30, with corresponding dimensions matching the bolts. These nuts are designed to withstand high temperatures and harsh environments.
Stainless Steel 330 Stud Bolts exhibit exceptional resistance to corrosion and high-temperature environments. Available in sizes from M6 to M30 with standard lengths ranging from 50 mm to 300 mm, they ensure durability and strength for critical applications.
Stainless Steel 330 Bolts offer excellent corrosion resistance, especially in high-temperature environments. They are available in various sizes, typically from M6 to M30, with lengths from 20 mm to 200 mm, ensuring reliability in extreme conditions.
Stainless Steel 330 Threaded Rods offer superior corrosion resistance and are available in diameters from M6 to M30. They come in lengths from 100 mm to 1000 mm, suitable for various industrial applications requiring high temperature and corrosion resistance.
Stainless Steel 330 Screws are highly resistant to corrosion and heat, making them suitable for demanding environments. Sizes generally range from M3 to M12, with lengths from 10 mm to 100 mm, providing reliable performance in high-temperature applications.

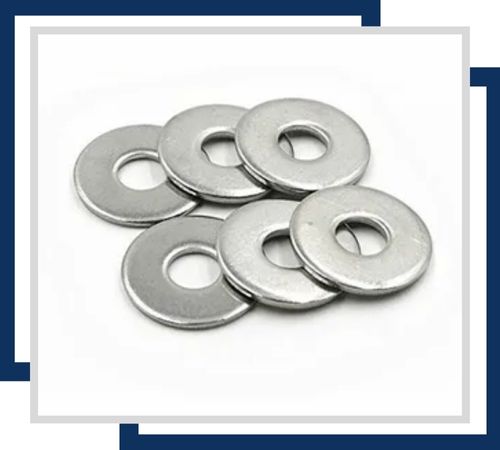

Stainless Steel 330 Washers provide excellent corrosion resistance and are used to distribute load and prevent damage. They come in sizes ranging from M6 to M30, with thicknesses typically from 1 mm to 10 mm, ensuring compatibility with various fasteners.
We are committed to customer satisfaction with our products. To achieve this we conduct thorough testing on our SS 330 Fasteners to guarantee both safety and purity. We also test hardness, PMI, mechanical properties as well as flare and micro/ macro examination. All these checks are made so that there may not be a problem with the product we have produced. Our products go for a third-party check on quality in accordance with both national and international standards before it hits the markets. Only then do we introduce Stainless Steel 330 Fasteners into the market after their release.
Stainless steel 330 fasteners are used in situations that involve extreme heat and corrosive atmospheres. Common applications include securing parts in industrial furnaces, heat exchangers, kilns, muffles, and other high-temperature processing equipment. These fasteners are particularly important in the petrochemical, power generation, and metallurgy industries, where materials face frequent thermal cycling and prolonged exposure to harsh environments. Their excellent resistance to oxidation and carburization helps ensure long-lasting performance, lower maintenance needs, and reliable mechanical connections in extreme service conditions.
