Shimizu Metals stands out as a top manufacturer and supplier based in Pulau Ujong, Singapore, with a focus on high-performance stainless steel products. One of their standout offerings is the **Stainless Steel 316Ti Fasteners**, celebrated for their exceptional strength, durability, and resistance to high-temperature corrosion. These fasteners are enhanced with titanium, which helps prevent carbide precipitation during welding and extended heat exposure, ensuring they perform excellently even in tough industrial settings.
The Stainless Steel 316Ti Fasteners are made up of 16–18% chromium, 10–14% nickel, 2–3% molybdenum, along with a carefully controlled amount of titanium for stabilization. This unique blend boosts their resistance to intergranular corrosion and enhances their durability in environments rich in chlorides and high temperatures. On the mechanical side, they provide impressive tensile and yield strength, outstanding toughness, and reliable creep resistance, making them perfect for critical fastening tasks.
| Standard | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Bolt / Screw Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Nuts Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Washers Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Machine Screws Size | M1.6 – M12 |
| Self Tapping Screw Size | No.2 – No. 14 |
| Length | 3 mm to 200 mm |
| Studs, Bolts, Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Bolting | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

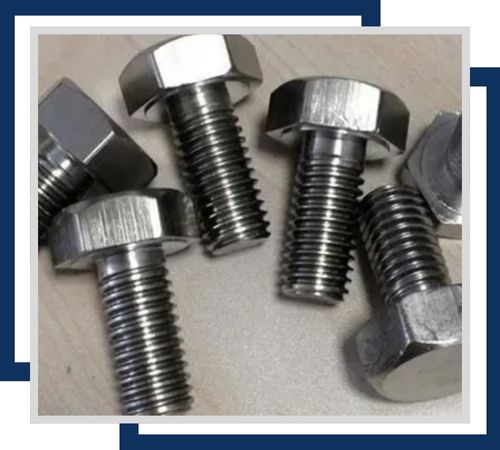

Corrosion-resistant and highly durable, Stainless Steel 316Ti Bolts are ideal for high-temperature and marine applications. Available in sizes ranging from M6 to M30, with lengths up to 300 mm. They offer excellent resistance to pitting and crevice corrosion.

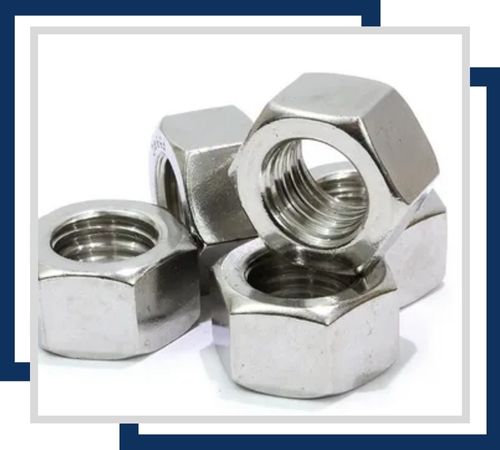

SS 316Ti Nuts are designed for exceptional corrosion resistance, especially in chloride environments. Typically available in sizes from M6 to M30, with various thread pitches. They complement 316Ti bolts and are used in high-temperature and aggressive environments.

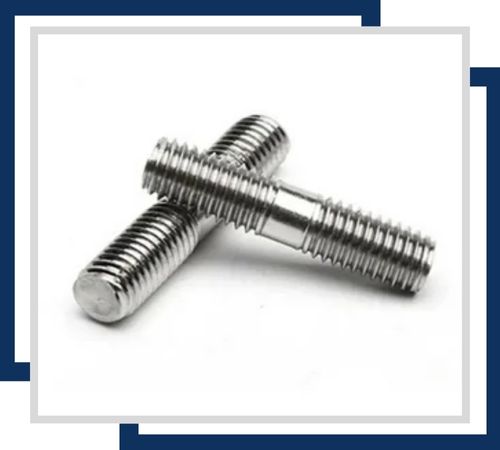

Offering superior resistance to corrosion and high strength, these Stud Bolts come in sizes from M6 to M30, with lengths ranging from 50 mm to 300 mm. Ideal for use in severe service conditions where high tensile strength is needed.

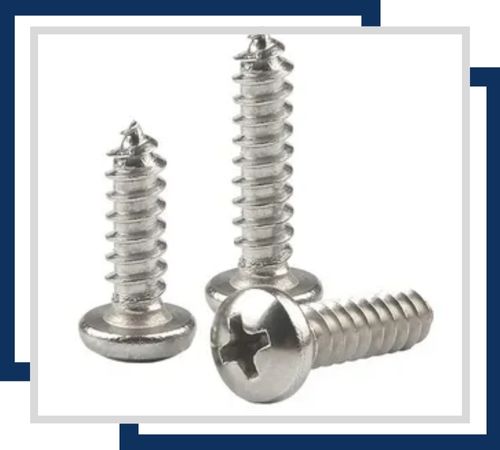

Known for their corrosion resistance, these screws are used in marine and industrial applications. Available in sizes from M2 to M20, with lengths up to 200 mm. They provide reliable performance in environments exposed to chemicals and saltwater.

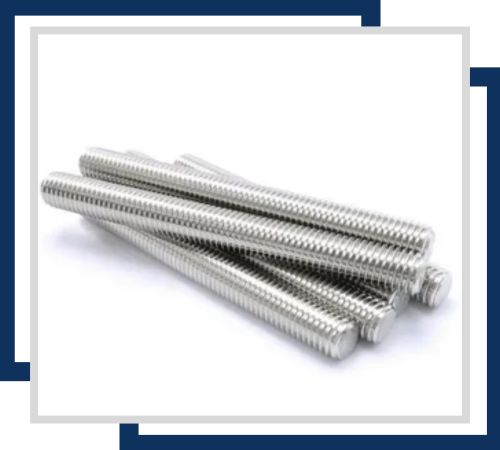

Corrosion-resistant and high-strength, these rods are available in diameters from M6 to M30 and lengths up to 3 meters. They are used in construction and industrial applications where resistance to harsh environments is critical.

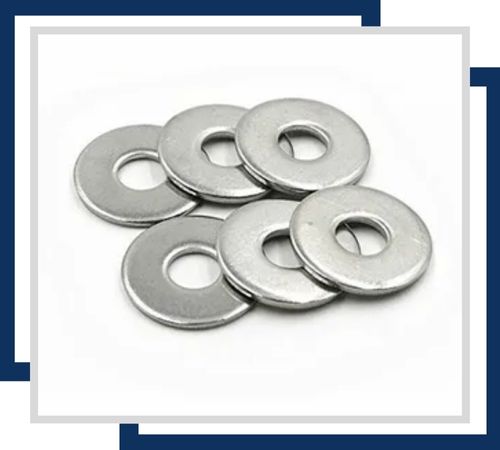

Offering excellent resistance to corrosion, these washers are available in sizes from M6 to M30. They ensure even load distribution and prevent damage to surfaces. It is ideal for use with 316Ti bolts and nuts in aggressive environments.
You’ll find Stainless Steel 316Ti Fasteners in a variety of industries, including chemical processing, marine, oil and gas, pharmaceuticals, and power generation. They’re particularly suited for securing equipment that faces heat, corrosive chemicals, and seawater, such as heat exchangers, pressure vessels, pipelines, furnaces, and structural assemblies. Thanks to their corrosion resistance and mechanical strength, they are a trustworthy choice for long-lasting performance in challenging service environments.
SS 316Ti Fasteners are largely considered to have excellent corrosion resistance especially in high-temperature environments. Because of its excellent stability in acid and chloride environments. It is widely used in the chemical, petrochemical and marine industries. Applications include heat exchanger packaging, industrial equipment and offshore structures. Their resistance to pitting, crack corrosion and high temperatures makes them ideal for use in harsh environments ensuring long-term reliability and performance.
