Nakamura Stainless, located in Pulau Ujong, Singapore, is a trusted manufacturer and supplier of high-quality stainless steel products, including stainless steel 317L bars. These bars are specifically designed for highly corrosive environments and provide excellent resistance to chemical attacks, particularly in acidic and chloride-rich conditions. Stainless steel 317L is a low-carbon alloy with molybdenum and offers better corrosion resistance than 316L. Nakamura Stainless ensures precise manufacturing and strict quality control, making their 317L bars suitable for industries such as chemical processing, pulp and paper, marine, and pharmaceutical production.
Stainless steel 317L bars contain about 18 to 20% chromium, 11 to 15% nickel, and 3 to 4% molybdenum, with reduced carbon content for better weldability and resistance to intergranular corrosion. These bars have a tensile strength of approximately 515 to 760 megapascals and retain good mechanical properties in both high-temperature and corrosive conditions. The added molybdenum enhances resistance to pitting, crevice corrosion, and general chemical attacks, especially in environments with sulfates, chlorides, and other aggressive substances.
| Specification | ASTM A276, A479 / ASME SA276, SA479 |
|---|---|
| Standard | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round Bars | Outside Diameter in the range of 4mm to 500mm |
| Bright Bars | Outside Diameter in the range of 4mm to 100mm |
| Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) |
| Square Bars | 8mm – 47mm (11/16″ to 1-3/4″) |
| Length | 1 to 6 meters, Custom Cut Length |
| Form | Round, Square, Hexagonal, Rectangular |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N |
| SS 317L | 0.03 max. | 2.00 max. | 0.75 max. | 0.045 max. | 0.03 max. | 18.0 – 20.0 | 11.0 – 15.0 | 3.0 – 4.0 | 0.1 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | ||
| Rockwell B (HR B) max | Brinell (HB) max | |||||
| 317L | 595 MPa | 260 MPa | 55% | 85 | 200 | – |
Contact us to get a quick quote for your requirement.
We ensures exceptional quality through rigorous testing and certification of stainless steel 317L frames. Each bar undergoes ultrasonic, hardness and tensile strength testing to ensure it meets industry standards. Certified to ISO 9001, EN10204 3.1/3.2, and NABL-accredited laboratory reports, our products guarantee durability, corrosion resistance and reliability for critical applications
Corrosion-resistant Stainless Steel 317L Round Bars come in various diameters, typically from 6mm to 300mm. Ideal for applications requiring high strength and resistance to chloride environments, these bars are used in chemical and marine industries.
Stainless Steel 317L Flat Bars are available in thicknesses from 3mm to 50mm and widths up to 300mm. These bars offer exceptional corrosion resistance, making them suitable for structural and industrial applications, including chemical processing.
Stainless Steel 317L Square Bars are produced in sizes ranging from 10mm to 100mm. Known for their durability and resistance to aggressive environments, they are ideal for use in manufacturing and construction where strength and corrosion resistance are essential.
Stainless Steel 317L Rectangular Bars come in custom sizes with typical thicknesses of 5mm to 50mm and widths from 20mm to 200mm. They are used in applications where strength and resistance to harsh conditions are critical, such as in marine and chemical industries.

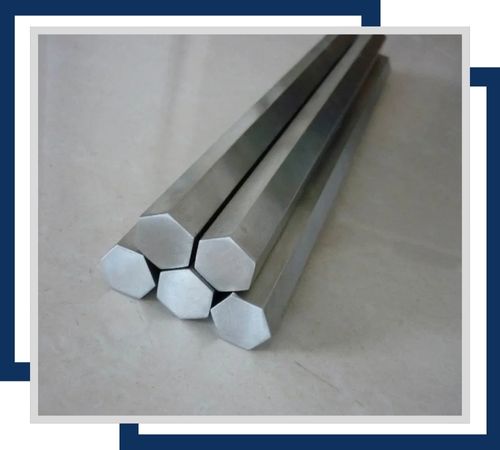

Stainless Steel 317L Hexagonal Bars are available in dimensions from 10mm to 100mm across flats. Their unique shape and corrosion resistance make them suitable for applications in high-stress environments, including aerospace and marine sectors.

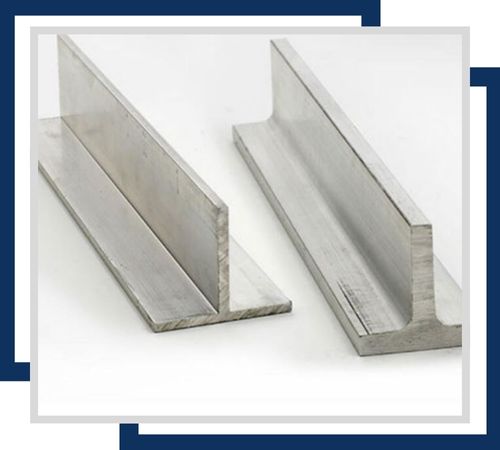

Stainless Steel 317L T-Bars are manufactured with standard dimensions, often ranging from 10mm x 10mm to 100mm x 100mm. These bars are used in structural and industrial applications where high resistance to corrosion and strength are required, such as in chemical processing plants.
Stainless steel 317L bars are commonly used in industries where high corrosion resistance and durability in harsh chemical environments are necessary. Typical applications include storage tanks, evaporators, heat exchangers, process piping, marine components, and pharmaceutical equipment. Their strong resistance to pitting and crevice corrosion makes them ideal for coastal and marine operations, as well as systems that are exposed to strong acids and salts. With good weldability, high strength, and a long service life, 317L bars provide a reliable option for critical applications in demanding industries.
