Nakamura Stainless, located in Pulau Ujong, Singapore, is a reliable maker and supplier of high-quality stainless steel products, including stainless steel 317 bars. These bars are ideal for severe corrosive environments. They provide strong resistance to chemical attack, especially in chloride-rich and acidic conditions. Stainless steel 317 is a type of austenitic stainless steel that contains molybdenum. It is known for its better corrosion resistance compared to standard 316. Nakamura Stainless focuses on precision manufacturing and strict quality control, supplying 317 bars to industries such as chemical processing, marine, pulp and paper, and pharmaceuticals.
Stainless steel 317 bars are made of about 18–20% chromium, 11–15% nickel, and 3–4% molybdenum. The molybdenum content greatly boosts resistance to pitting, crevice corrosion, and general chemical attack. These bars usually have a tensile strength of 515–760 megapascals and maintain excellent mechanical properties even in high temperatures and corrosive conditions. The austenitic structure of the alloy ensures good formability, weldability, and durability, which makes it suitable for both structural and pressure-bearing uses.
| Specifications | ASTM A 276 / SA 276 |
|---|---|
| Dimensions | ASTM, ASME |
| Range | 3.17 MM TO 350 MM DIA |
| Diameter | 25mm to 152mm |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc., |
| Condition | Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N |
| SS 317 | 0.08 max. | 2.00 max. | 1.00 max. | 0.045 max. | 0.03 max. | 18.0 – 20.0 | 11.0 – 14.0 | 3.0 – 4.0 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | ||
| Rockwell B (HR B) max | Brinell (HB) max | |||||
| 317 | 620 MPa | 275 MPa | 45% | 85 | 193 | – |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel 317 panels are rigorously tested for quality, durability and performance. Products are subjected to various tests, including mechanical, chemical and corrosion resistance studies. Certified to industry standards, each batch is accompanied by appropriate certifications to ensure compliance and customer satisfaction.
Corrosion-resistant Stainless Steel 317 Round Bars come in various diameters, typically from 6mm to 300mm. They are ideal for applications requiring high resistance to chloride corrosion, such as marine and chemical environments.

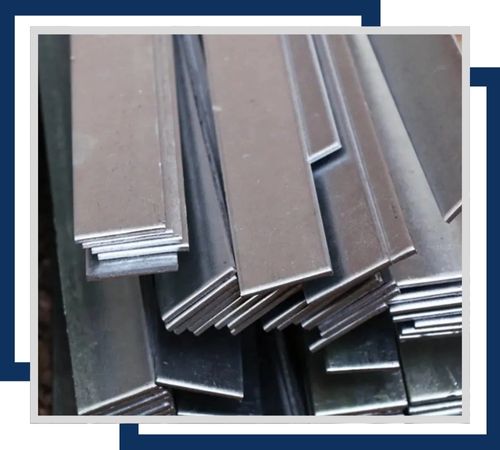

Stainless Steel 317 Flat Bars are available in widths ranging from 10mm to 300mm and thicknesses from 3mm to 50mm. These bars excel in resisting corrosion and are used in structural applications exposed to harsh chemicals.
Stainless Steel 317 Square Bars, offered in sizes from 10mm to 100mm, provide excellent resistance to corrosion in aggressive environments. They are used in various structural and manufacturing applications requiring robust material properties.
Stainless Steel 317 Rectangular Bars come in dimensions like 20mm x 10mm to 150mm x 50mm. They are preferred for applications needing high strength and resistance to corrosive substances, such as heat exchangers.
Corrosion-resistant Stainless Steel 317 Hexagonal Bars, available in sizes from 10mm to 100mm across flats, offer excellent performance in corrosive environments. They are used in industries where both strength and corrosion resistance are critical.
Stainless Steel 317 T-Bars are typically available in sizes like 10mm x 10mm to 100mm x 100mm. These bars provide high resistance to corrosion and are used in structural supports and frameworks exposed to aggressive conditions.
Stainless steel 317 bars are often used in situations that require high resistance to corrosion and chemical exposure. Common uses include process piping, heat exchangers, evaporators, chemical tanks, and parts in marine and pharmaceutical equipment. These bars perform exceptionally well in harsh environments with chemicals, salts, and acids. They offer reliable strength and a long service life. Their strong corrosion resistance and structural stability make them a popular choice for industries that work in aggressive and demanding conditions.
