Nakamura Stainless stands out as a top-notch manufacturer and supplier based in Pulau Ujong, Singapore, specializing in high-quality stainless steel products designed for durability and strength. Among their standout offerings are the Stainless Steel 317 Pipes, which are celebrated for their exceptional corrosion resistance, especially in harsh environments. Thanks to a higher molybdenum content compared to standard grades, these pipes excel at resisting pitting, crevice corrosion, and chemical attacks. Crafted to meet global quality standards, Stainless Steel 317 Pipes promise reliability, durability, and impressive performance in even the most demanding industrial settings.
These pipes are made up of 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, which significantly boosts their corrosion resistance in acidic and chloride-heavy environments. On the mechanical side, they boast high tensile strength, good yield strength, and remarkable toughness. Their structure also provides strong creep resistance at elevated temperatures, making them highly effective in tough conditions while ensuring they remain weldable and durable.
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
Grade | Ni | Mn | P | C | S | Si | Cr | Mo | N | |
317 | min. | 8.0 | – | – | – | – | – | 18.0 | – | – |
max. | 10.5 | 2.0 | 0.045 | 0.08 | 0.030 | 0.75 | 20.0 | |||
Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
317 | 515 | 40 | 205 | 92 | 201 |
Contact us to get a quick quote for your requirement.
We ensures high quality stainless steel 317 pipe through extensive testing and certification. Our pipe involves chemical composition analysis, mechanical testing and dimensional inspection. We offer comprehensive certificates of compliance, proving that international standards are met. This provides exceptional strength, corrosion and reliability, which promises all the requirements of the industry.
Stainless 317 Square Pipes are square-shaped pipes made from 317 stainless steel, offering superior corrosion resistance, durability, and strength, making them ideal for structural and industrial applications in harsh environments.

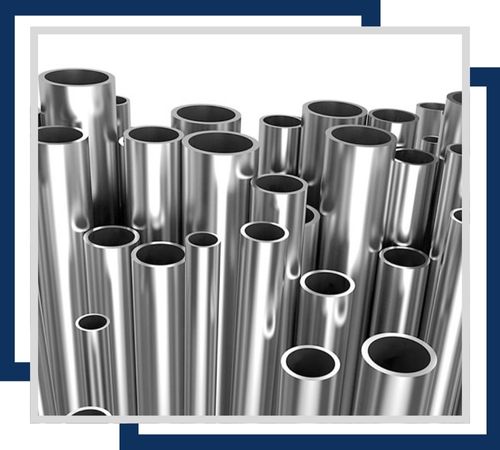

SS 317 Seamless Pipes are made from 317 stainless steel without welded seams, providing excellent corrosion resistance, strength, and durability, suitable for industrial applications and environments with high chemical exposure.

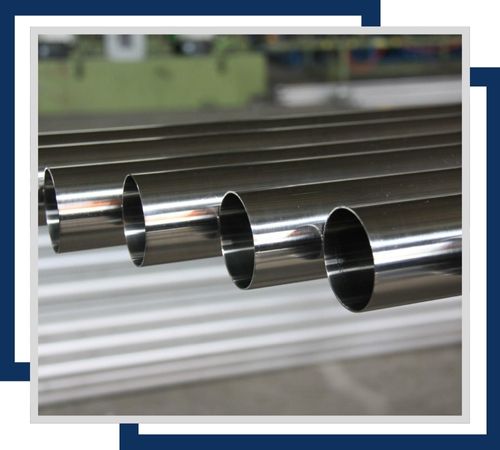

Stainless Steel 317 ERW Pipes are electric resistance welded pipes made from 317 stainless steel, offering high corrosion resistance, strength, and durability, ideal for industrial applications and environments exposed to harsh conditions.

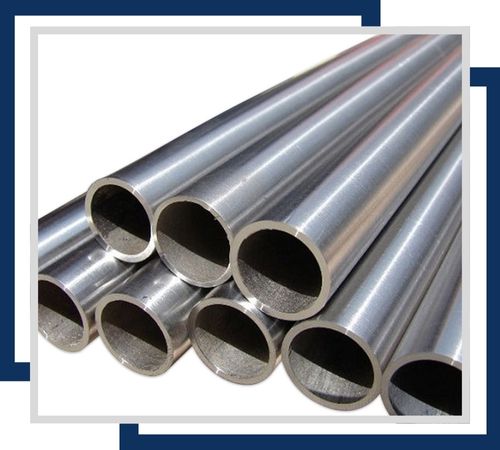

SS 317 LSAW pipe is longitudinally submerged arc welded pipes made of 317 stainless steel, which provide excellent corrosion resistance, high strength and durability for high pressure applications

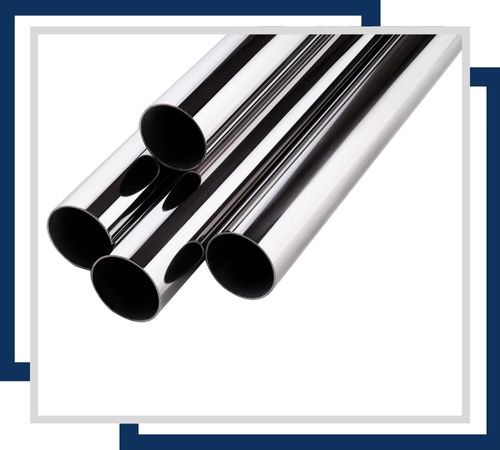

Stainless Steel 317 Round Pipes are cylindrical pipes made from 317 stainless steel, offering excellent corrosion resistance, durability, and strength, ideal for use in industrial applications and harsh environments.

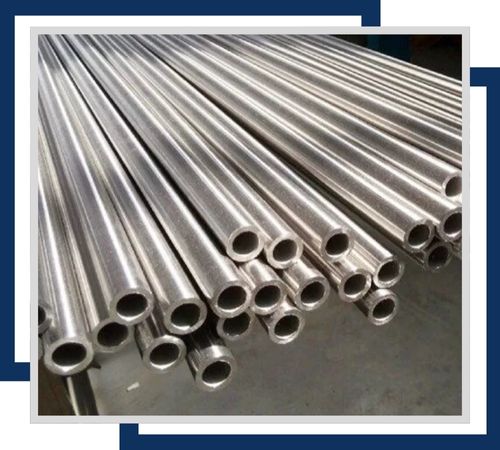

Stainless Steel 317 Welded Pipes are pipes made from 317 stainless steel and joined by welding, providing excellent corrosion resistance, strength, and durability for various industrial and high-heat applications.
Stainless Steel 317 Pipes find their place in various industries, including chemical and petrochemical plants, marine applications, and pharmaceuticals. They are perfect for use in heat exchangers, condensers, pulp and paper processing, food processing, and textile machinery, where resistance to aggressive chemicals is essential. Their outstanding strength and corrosion resistance make them ideal for critical applications that demand a long service life and reliable performance in challenging environments.
