Nakamura Stainless, which is based in Pulau Ujong, Singapore, is a reliable manufacturer and supplier of high-performance Stainless Steel XM19 nuts for challenging applications in marine, chemical, petrochemical, and construction industries. Nakamura is famous for its commitment to quality and manufactures fasteners that satisfy rigorous international standards with enhanced mechanical strength and remarkable corrosion resistance. Stainless Steel XM19 nuts are specifically intended for use in situations where the ordinary stainless steels lack, especially in chloride-containing or high-stress environments. Through devotion to precision engineering and customer satisfaction, Nakamura Stainless provides stable fastening solutions for high-performance and critical industrial processes.
Stainless Steel XM19 nuts consist of nitrogen-strengthened austenitic stainless steel containing about 20–23% chromium, 11–13% nickel, 4–6% manganese, and 1.5–3% molybdenum along with nitrogen added for strength. This alloy provides double the 316 stainless steel’s yield strength with outstanding corrosion resistance, including enhanced crevice and pitting corrosion resistance. Mechanically, XM19 provides a yield strength of approximately 380–690 MPa and tensile strength of up to 1000 MPa with good impact resistance and ductility. It possesses good mechanical properties in both cryogenic and high-temperature conditions, rendering it perfectly suited for critical fasteners applications.
Material | Specification | Standards | Size | Length |
Stainless Steel XM19 Nuts | ANSI ,DIN,ASME,ASTM | ASTM / ASME – A/ SA 320 | M4-M100(1/4-4 inch) | M02 to M33 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| XM19 | min. max. | – 0.06 | 4.0 6.0 | – 1.00 | – – | – – | 20.5 23.5 | 1.5-3 | 11.5 13.5 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| XM19 | 100 KSi | 55 KSi | 35% | 55% | 293 |
Contact us to get a quick quote for your requirement.
Stainless Steel XM19 nuts offer superior strength, corrosion resistance, and durability, ideal for harsh environments and high-stress applications. Their precision and reliability make them essential for demanding engineering and construction projects.

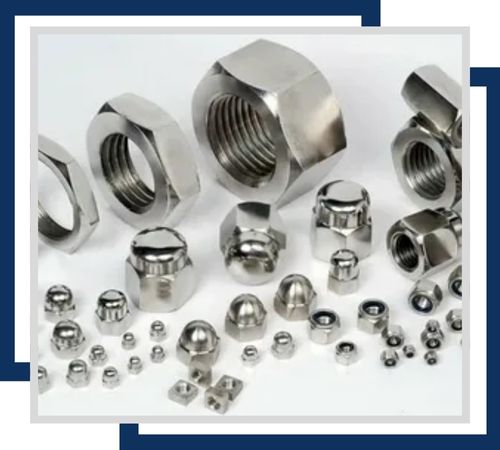

Stainless Steel XM19 Flex Lock Nuts feature a unique design that prevents loosening under vibration. They offer exceptional strength, corrosion resistance, and durability, making them perfect for high-stress applications.
Stainless Steel XM19 K Lock Nuts provide excellent resistance to loosening due to vibrations and dynamic loads. They combine high strength, corrosion resistance, and durability, ideal for demanding and critical applications.
SS XM19 High Nuts offer robust performance with superior corrosion resistance and strength. Their extended height enhances grip and stability in critical applications, making them ideal for demanding and high-stress environments.
XM19 SS Serrated Flange Nuts feature a serrated flange that grips surfaces firmly, preventing loosening under vibration. They provide exceptional strength, corrosion resistance, and stability, ideal for high-stress and dynamic applications
We uphold stringent quality standards for our Stainless Steel XM19 Nuts, subjecting them to rigorous testing. Our extensive tests encompass the Hardness Test, Chemical Analysis via Spector Analysis, PMI Testing, Flattening Test, Micro and Macro Tests, Pitting Resistance Test, Flaring Test, and Intergranular Corrosion (IGC) Test. Commercial invoice, packaging list, Certificate of Origin and Guarantee Letter accompany our nuts. For added assurance, we offer third-party inspection certificates, validating the excellence and suitability of our Stainless Steel XM19 Nuts across various applications and ensuring client satisfaction.
Stainless Steel XM19 nuts are employed where high strength and superior corrosion resistance are needed. Some of the applications include marine hardware, seawater systems, offshore petroleum platforms, and chemical plants where chlorides and severe environments are to be resisted. They are also used extensively in pumps, valves, heat exchangers, and structural fittings in bridges and heavy construction work. Their lack of magnetism and high fatigue resistance qualify them for high-performance applications in aerospace and defense. XM19 nuts provide reliable, long-term fastening under high-stress, corrosive, and safety-relevant conditions.
