Shimizu Metals stands out as a reliable manufacturer and supplier based in Pulau Ujong, Singapore, specializing in top-notch stainless steel products that are built for strength, durability, and performance in high-temperature settings. Our **Stainless Steel 316H Bolts** are crafted to deliver exceptional tensile and yield strength while also providing outstanding resistance to corrosion, even in harsh and elevated temperature environments. With a higher carbon content compared to 316L, these bolts guarantee mechanical reliability and long-lasting fastening performance, making them perfect for demanding industrial applications.
The composition of Stainless Steel 316H Bolts includes 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a carbon content ranging from 0.04–0.08%. This unique blend enhances their strength at high temperatures and improves creep resistance, all while maintaining excellent corrosion resistance in environments rich in chlorides and acids. Mechanically, they offer high tensile and yield strength, good toughness, and reliability under thermal stress, making them ideal for critical fastening tasks.
|
Material |
Specification |
Standards |
Size |
Length |
|
Stainless Steel 316H Bolts |
ASTM, ASME and API |
ASTM B 193 / ASME SB 193 |
M02 to M30 |
3 mm To 200 mm |
| Element | SS 316H |
| Tensile Strength (MPa) min | 480 |
| Yield Strength 0.2% Proof (MPa) min | 275 |
| Elongation (% in 50mm) min | 16 |
| Rockwell B (HR B) max Hardness | 95 |
| Brinell (HB) max Hardness | 201 |
| Element | SS 316H |
| Ni | 0.75 |
| C | 0.15 |
| Mn | 1.00 max |
| P | 0.04 max |
| S | 0.03 max |
| Si | 1.00 max |
| Cr | 11.5 – 13.5 |
| Mo | – |
| N | – |
Contact us to get a quick quote for your requirement.

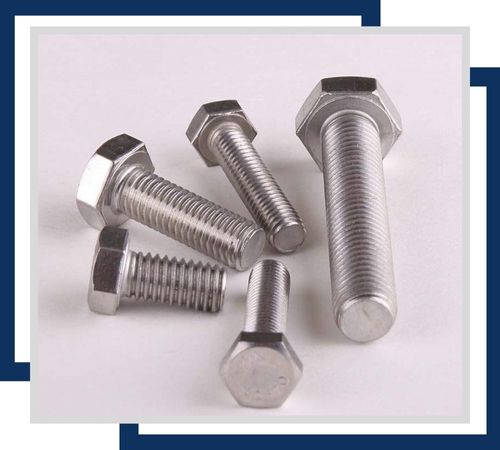

Stainless Steel 316H Bolts are high strength, corrosion resistant fasteners designed for harsh environmental conditions. They provide excellent resistance to corrosion and chloride-induced corrosion, making them suitable for marine chemical applications.

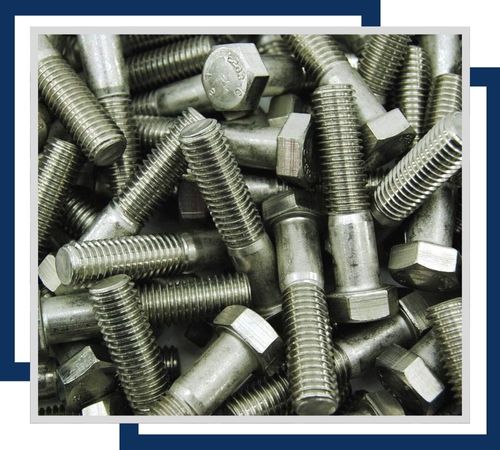

Custom Stainless Steel 316H Hex Bolt is a high strength, corrosion-resistant fastener with a hexagonal head that fits specific shapes. Provides exceptional durability and heat resistance for rugged applications.

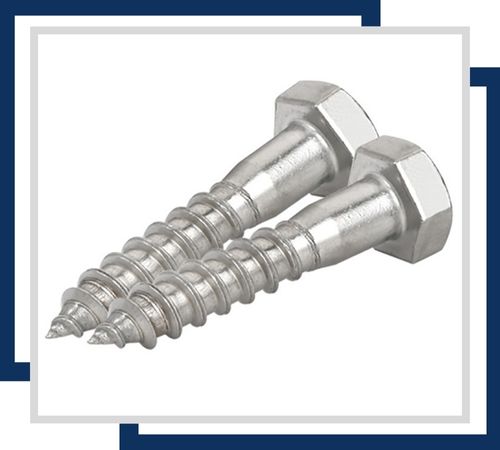

Stainless Steel 316H Leg Bolt is a high-strength, corrosion-resistant material with a long threaded shank and flat head, engineered for durability and stability in high temperatures and in deep environments tough

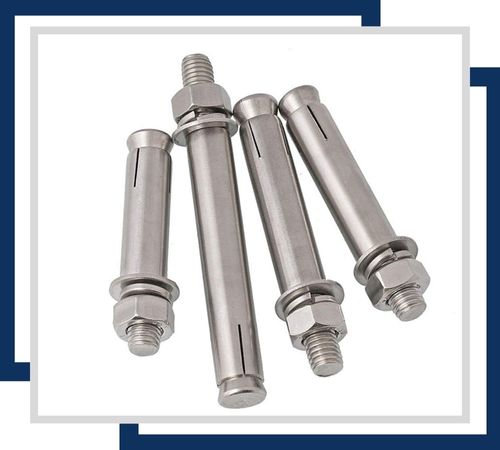

Stainless Steel 316H Expansion Anchor Bolt is a corrosion-resistant fastener used to secure concrete or masonry structures. It is stiff and wide in the hole, providing a firm grip.

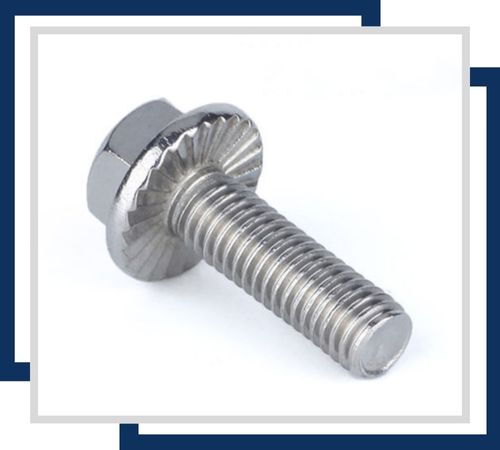

Stainless Steel 316H Hex Flange Head Bolt has a hexagonal head with an integrated flange for better weight distribution. Provides excellent corrosion resistance and durability for high temperatures and harsh environmental conditions.

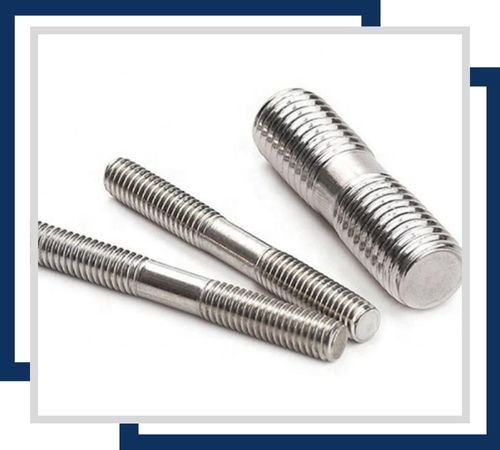

Stainless Steel 316H Full Threaded Bolts have threads along their entire length, providing consistent clamping force and high corrosion resistance. They are ideal for applications requiring strength and durability in harsh environments.
SS 316H Bolts are widely used in areas with high temperatures and corrosive elements. Ideal for marine applications, chemical plants, and power plants where chloride corrosion resistance and high strength are required These bolts are used in petrochemical plants, air filters, and industrial equipment a it’s very hot. Its durability makes it suitable for installation in areas where harsh conditions and chemical exposure are common.
