Home > Pipe Fittings > Stainless Steel 304H Pipe Fittings
The Stainless Steel 304H Pipe Fittings are made with a higher carbon content, which enhances their strength at elevated temperatures. Their composition features chromium (18–20%), nickel (8–11%), carbon (0.04–0.10%), along with controlled amounts of manganese, silicon, phosphorus, and sulfur, providing outstanding corrosion resistance and oxidation properties. These fittings boast impressive mechanical characteristics, including a minimum tensile strength of 515 MPa, yield strength of 205 MPa, and an elongation of 40%. Their sturdy design makes them perfect for tough industrial applications that demand durability and stability.
Stainless steel 304H pipe fittings are made of an alloy of mainly 18-20% chromium and 8-10.5% nickel, which gives excellent excrosion resistance It also contains 0.04-0.10% carbon content, which gives its high thermal stability is increased. 304H is known for its hardness, oxidation resistance and ability to withstand high temperatures, making it suitable for use in industrial applications such as chemical systems, power plants, heat exchangers etc. Its mechanical properties include good tensile strength, high yield strength and good weldability
| Grades | 201, 202, 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Size | ½”NB to 48″NB in |
| Schedule | Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.
We ensures top quality stainless steel 304H pipe fittings, which have been rigorously tested for durability and performance. Our products undergo extensive quality testing, including dimensional accuracy, corrosion resistance and pressure tolerance testing. Certified to international standards, these fittings provide exceptional strength, reliability and long-term performance guarantees for industrial applications.

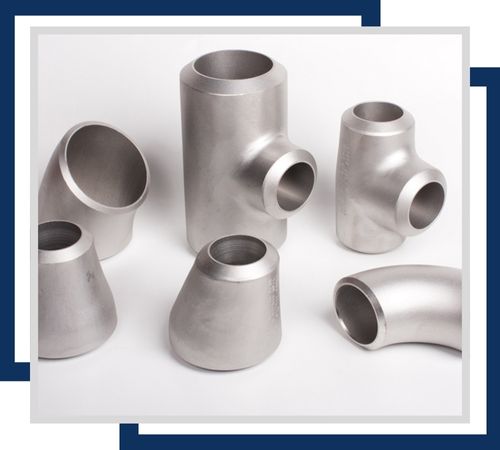

Stainless Steel 304H pipe fittings are high-strength components designed for high-temperature and high-pressure applications. They offer excellent corrosion resistance and durability, making them suitable for demanding industrial and chemical environments.

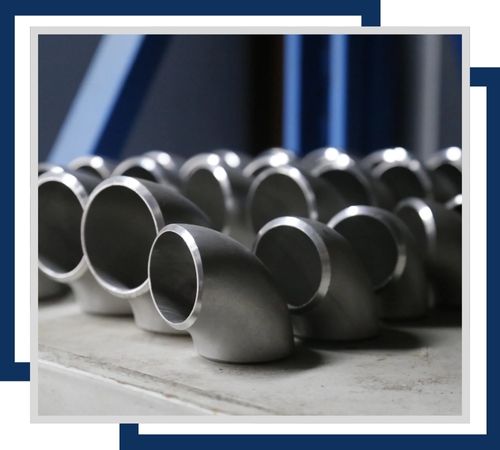

SS Butt Weld 304H pipe fittings are stainless steel components designed to connect pipes by welding their ends together. They provide strong, durable joints with excellent corrosion resistance for high-temperature applications.
SS Socket 304H weld pipe fittings are stainless steel components that connect pipes by fitting them into a socket and welding around the joint. They ensure strong, leak-proof connections in high-temperature applications.
Stainless Steel 304H seamless fittings are high-strength, corrosion-resistant components manufactured without welds. They provide uniformity and reliability, making them ideal for high-pressure and high-temperature applications in industrial systems.

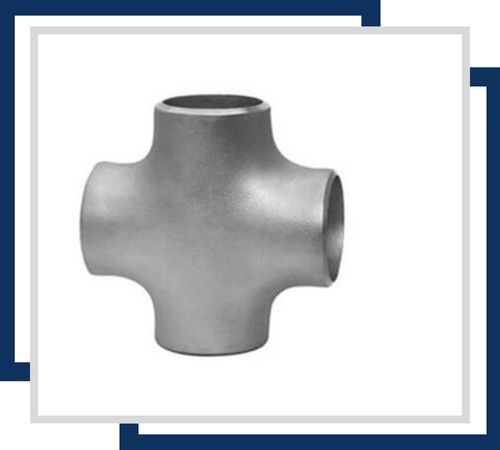

SS Cross 304H pipe fitting is a stainless steel component designed to connect four pipes at a cross-shaped junction. It offers durability, strength, and excellent corrosion resistance, suitable for high-pressure and high-temperature applications.

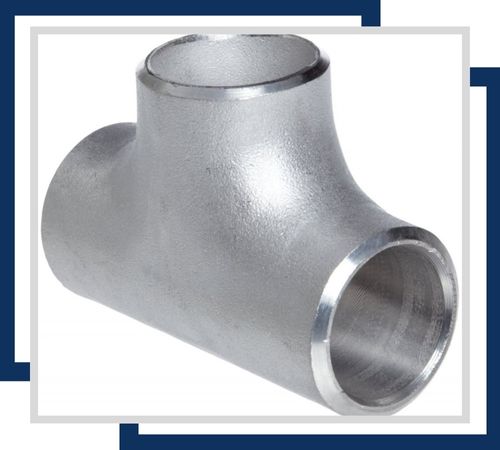

Stainless Steel 304H tee fittings are pipe fittings designed to join three pipes at a T-shaped junction. They offer high strength, durability, and excellent corrosion resistance, making them ideal for high-pressure and high-temperature applications.
Stainless Steel 304H Pipe Fittings find extensive use in industries that function under high-pressure and high-temperature conditions. They are the go-to choice in petrochemical plants, oil and gas refineries, power generation facilities, and chemical processing equipment due to their remarkable resistance to corrosion and scaling. Additionally, these fittings are essential in boilers, heat exchangers, and superheaters, where strength and reliability at high temperatures are vital. Their durability, ease of fabrication, and low maintenance needs make them a smart, cost-effective option for critical industrial infrastructure and long-lasting performance.
