Nakamura Stainless, a top-notch manufacturer and supplier based in Pulau Ujong, Singapore, has built a solid reputation for providing world-class stainless steel products that adhere to strict international standards. Among their standout offerings, **Stainless Steel 440B Sheets and Plates** are particularly esteemed for their remarkable hardness, outstanding wear resistance, and long-lasting durability. Crafted for the toughest industrial settings, these sheets and plates deliver exceptional performance and a lengthy service life. With a strong focus on precision, strength, and reliability, Nakamura Stainless serves various industries, including engineering, manufacturing, defense, and tooling, with high-quality stainless steel solutions.
**Stainless Steel 410S Sheets and Plates** are made from low-carbon, non-hardening martensitic stainless steel, featuring 11.5–13.5% chromium, along with trace amounts of manganese and silicon, and very little carbon to enhance weldability. This unique composition grants them excellent resistance to oxidation and corrosion in mildly aggressive settings. The alloy boasts moderate tensile strength ranging from 380–560 MPa and a yield strength of about 205 MPa, along with good ductility and toughness. Its ferritic structure ensures outstanding thermal stability and resistance to scaling up to 650°C, making it ideal for applications that demand both durability and heat resistance.
Standard : ASTM / ASME A240 / SA240
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
| Element | SS 410S |
| C | 0.08 max |
| Mn | 1 max |
| Si | 1 max |
| P | 0.040 max |
| S | 0.030 max |
| Cr | 11.5 – 13.5 |
| Fe | 85 |
| Element | SS 410S |
| Density | 7.8 g/cm3 |
| Tensile Strength | psi – 64,400, MPa – 444 |
| Yield Strength (0.2%Offset) | psi – 42,000, MPa – 290 |
| Elongation | 33 % |
| Hardness | Rockwell B (HR B)- 75 / Brinell (HB)- 65 |
Contact us to get a quick quote for your requirement.
Stainless Steel 410S hot rolled sheets possess excellent corrosion resistance with high strength and toughness. The sheets come in a wide range of thicknesses, starting from 1.5 mm up to 20 mm with widths up to 2000 mm. These are suitable for high-impact resistant applications.

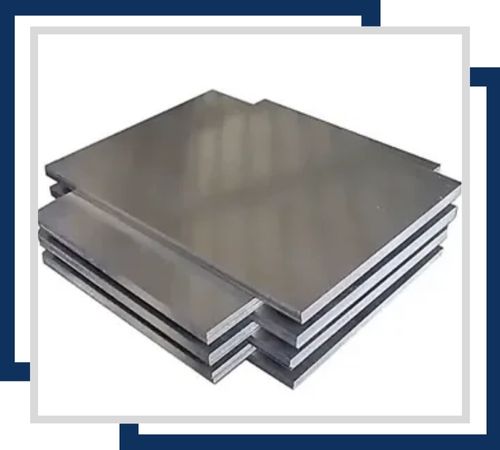

Stainless Steel 410S Cold Rolled Plates have corrosion resistance along with a smooth, bright surface finish. Usually made available in width up to 1500mm and in different thickness ranges such as 0.5-6 mm these plates are specially suited for use in precision engineering and for critical applications where closer tolerances apply.

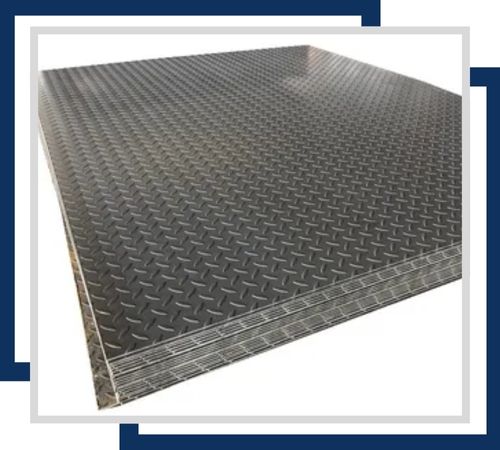

Stainless Steel 410S Chequered Sheets have a raised pattern, which gives excellent corrosion and slip resistance. These sheets are available in various thicknesses from 1.2 mm to 6 mm and up to 2000 mm x 1000 mm dimensions, which make them suitable for flooring and decorative applications.
Stainless Steel 410S Perforated Plates combine protection against corrosion with increased ventilation and aesthetics. The perforated plates are available in a number of hole sizes and patterns, available in thicknesses ranging from 1 mm up to 4 mm and available in dimensions up to 2500 mm × 1200 mm for filters and screens.
The Shim Sheets of Stainless Steel 410S are available with corrosion resistance and precise control over thickness. These sheets are available in 0.1 mm thickness up to 1000 mm x 1000 mm, cut to size for fine-tuning mechanical fits.

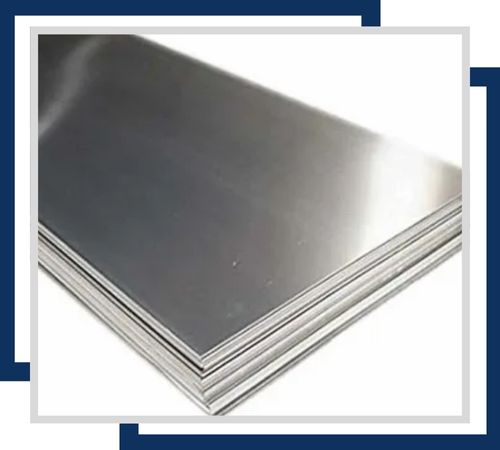

Stainless Steel 410S polished plates offer outstanding corrosion resistance and have a highly reflective finish. The plates are usually available in sizes up to 2000 mm x 1000 mm with thickness between 1mm and 6mm. Stainless Steel 410S Polished Plates are used in aesthetic applications as well as in decorative purposes.
Nakamura Stainless guarantees a high customer experience by completing all the necessary documentation of high-quality Stainless Steel 410S Sheets and Plates. We will provide our customer with commercial invoices, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and lab test reports certified by NABL-approved labs to prove authenticity and superior quality in our products that can give complete trust and satisfaction to our respected customers. Additionally, our Stainless Steel 410S Sheets and Plates are supplied with test certificates such as MTC as per EN 10204/3.1b, PMI Test Certificate, a 100% radiography test report, and Third Party Inspection Certificate. These certificates reflect our customer-focused approach and our very strong commitment to product excellence.
**Stainless Steel 410S Sheets and Plates** find their place in industries where a balance of corrosion resistance and mechanical strength is crucial. In the automotive sector, they are commonly used for exhaust systems, heat shields, and catalytic converter housings due to their thermal stability. In the petrochemical and oil industries, they are utilized in refinery equipment, piping, and tanks. The construction industry employs them for structural components and cladding, while energy plants use them in heat exchangers and furnace parts. Their weldability, cost-effectiveness, and durability make them a versatile choice for a wide range of engineering applications.
