Nakamura Stainless, a top-notch manufacturer and supplier based in Pulau Ujong, Singapore, is well-known for providing high-quality stainless steel products that adhere to international standards for both quality and performance. Among their impressive offerings, **Stainless Steel 316Ti Sheet and Plates** stand out for their remarkable corrosion resistance and durability, especially in high-temperature and harsh environments. Thanks to the titanium stabilization, these sheets and plates effectively prevent carbide precipitation, which ensures they have a long service life and excellent weldability. Nakamura Stainless is dedicated to delivering precision-engineered products that cater to critical industries like chemical processing, marine, pharmaceuticals, oil and gas, and power generation, all with unmatched reliability.
**Stainless Steel 316Ti Sheet and Plates** are made from titanium-stabilized austenitic stainless steel, featuring 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, along with traces of carbon, manganese, and silicon. The addition of titanium significantly boosts their resistance to intergranular corrosion during welding and exposure to high temperatures. On the mechanical side, they boast a tensile strength of about 515 MPa, a yield strength of around 205 MPa, and an elongation of up to 40%, ensuring they are tough and formable. Their ability to endure elevated temperatures up to 870°C makes them perfect for applications that demand strength, stability, and exceptional corrosion resistance under thermal stress.
Specifications : ASTM A240 / ASME SA240
Size : 1/4″ to 4″
Range : 5mm To 150mm
Thickness : 4.0mm – 100mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Mo | |
| SS 316Ti | min. | – | 10.0 | – | – | – | – | – | 16.0 | 2.00 |
| max. | 0.08 | 14.0 | 0.75 | 0.10 | 0.030 | 2.00 | 0.045 | 18.0 | 3.00 |
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 316Ti | 515 | 35 | 205 | 75 | 205 |
Contact us to get a quick quote for your requirement.

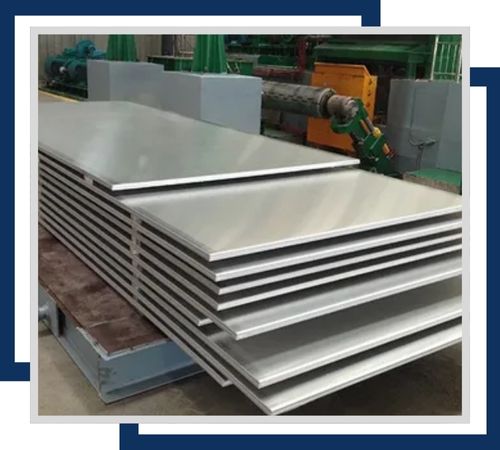

Stainless Steel 316Ti Hot Rolled Sheet and Plates are highly resistant to high temperatures and corrosion, making them suitable for chemical processing and petrochemical industries. They are very durable and can be used in demanding industrial applications.

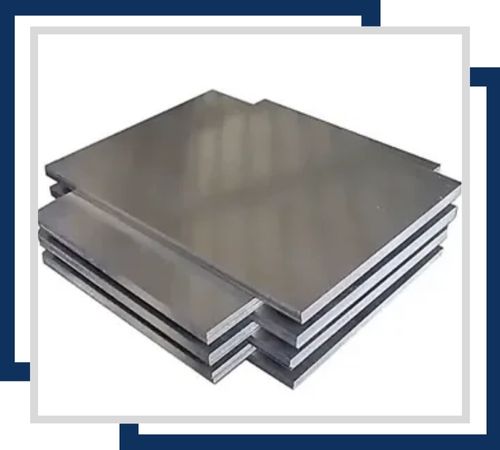

Stainless Steel 316Ti Cold Rolled Sheet and Plates have a smooth surface finish and precise dimensions, making them ideal for applications requiring superior resistance to high temperatures and corrosion, such as in marine and chemical environments.
The stainless steel 316Ti chequered sheet and plates are provided with slip resistance and durability that can be utilized for flooring and stair treads in industrial as well as commercial applications. These provide excellent corrosion resistance and high-temperature stability.
Stainless Steel 316Ti Perforated Sheet and Plates are used for filtration, ventilation, and as decorative purposes. They combine the strength of resistance against corrosion with the aesthetic value while having accurate perforations to add custom design and functionality in extreme environments.
Stainless Steel 316Ti Shim Sheet and Plates are used in machinery and equipment for precise spacing and alignment. With high-temperature resistance and resistance against corrosion, they provide stability and durability in critical industrial applications.
Stainless Steel 316Ti Polished Sheet and Plates have an excellent quality, reflective finish, making them very good for architectural and decorative applications. They have outstanding corrosion and high-temperature resistance, so they provide environment where performance and appearance both are important are worthwhile.
Nakamura Stainless providing hassle-free experience for our customers, offering them with complete documents regarding high-quality Stainless Steel 316Ti Sheets and Plates from us. Important documents like commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports ensure that the products come from the source of authenticity and of superior quality. In addition, our Stainless Steel 316Ti Sheets and Plates are provided with different test certificates like MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection certificates to ensure full customer satisfaction along with continuous efforts toward product excellence.
**Stainless Steel 316Ti Sheet and Plates** are extensively utilized in various industries that require strength, heat resistance, and corrosion protection. In chemical and petrochemical plants, they are commonly used for processing equipment, tanks, and piping systems that come into contact with aggressive chemicals. The marine industry relies on them for shipbuilding and seawater applications due to their resistance to chlorides. They also find applications in pharmaceuticals, food processing, and heat exchangers, where hygiene and durability are crucial. Their outstanding weldability and stability in fluctuating temperatures make them ideal for demanding, long-term industrial applications.
