Nakamura Stainless, a reputable manufacturer and supplier based in Pulau Ujong, Singapore, has built a solid reputation for providing top-notch stainless steel products that adhere to international quality standards. Among their extensive offerings, **Stainless Steel 316/316L Sheet and Plates** stand out for their exceptional corrosion resistance, durability, and adaptability in challenging environments. Thanks to the addition of molybdenum, these grades boast enhanced resistance to chlorides and acidic conditions. The low carbon content in 316L not only improves weldability but also reduces the risk of carbide precipitation. Nakamura Stainless is committed to delivering precision, durability, and timely service, catering to industries like marine, chemical, petrochemical, pharmaceuticals, and food processing.
**Stainless Steel 316/316L Sheet and Plates** are austenitic stainless steels that contain 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, along with traces of carbon, manganese, and silicon. The addition of molybdenum significantly boosts resistance to pitting and crevice corrosion, especially in environments rich in chlorides. Grade 316 is known for its high tensile and creep strength, while 316L, with its lower carbon content, offers better weldability and resistance to intergranular corrosion. Their mechanical properties include a tensile strength of around 515 MPa, yield strength of about 205 MPa, and elongation of up to 40%, ensuring they remain durable, tough, and stable even under high-stress conditions.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|
316 |
Min |
– |
– |
– |
0 |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.08 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
|
316L |
Min |
– |
– |
– |
– |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
ade |
Tensile Str
(MPa) min |
Yield Str
0.2% Proof
(MPa) min |
Elong
(% in 50mm) min |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
|
316 |
515 |
205 |
40 |
95 |
217 |
|
316L |
485 |
170 |
40 |
95 |
217 |
Contact us to get a quick quote for your requirement.
Stainless Steel 316 Hot Rolled Plates are great plates for numerous applications due to excellent corrosion resistance. The hot rolled plates available vary in size, from 4mm up to 150mm in thickness, and from 2000mm in width.

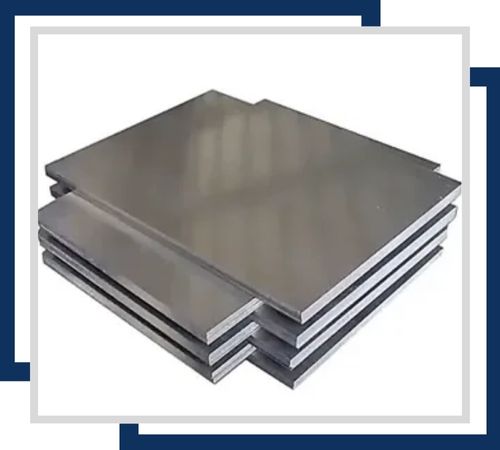

Stainless Steel 316L Cold Rolled Sheets are famous for their high corrosion resistance. The sheets come in thickness from 0.3mm to 6mm and width up to 2000mm. These sheets offer a smooth finish and are used in applications where precision and aesthetic appeal are required.

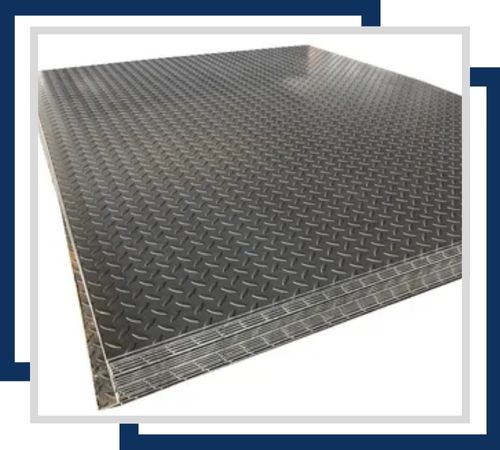

The chequered stainless steel 316L sheets have a raised diamond pattern that gives it a better grip and less slipping. The thicknesses of the sheets are from 3mm to 8mm, and sizes are up to 1500mm x 3000mm for flooring and walkways.
Stainless Steel 316 Perforated Plates provide superior corrosion resistance. The products are available in different thicknesses of 0.4mm to 12mm with a range of hole sizes and patterns, suitable for several industrial applications in filtration and ventilation.
Stainless steel 316L shim sheets-very thin material, very sharp, corrosion resisting, with many applications for spacers and other alignment needs in machinery and structurals from 0.05mm up to 3mm with cut options by specific size or width.
Stainless Steel 316L Polished Plates have high corrosion resistance along with a bright mirror finish. The plates come in a variety of thickness, from 0.5mm to 50mm, and sizes up to 2000mm x 6000mm for decorative purposes, architectural applications, and other heavy industrial uses.
Nakamura Stainless focuses on an hassle-free experience for customers while providing rich documentation for our stainless steel sheets/plates of high-quality type 316 and 316L. We guarantee the authenticity and superior quality of our products with guaranteed documents such as commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports. Our Stainless Steel 316/316L Sheets and Plates also come with various test certificates which include MTC in accordance with EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. Our company promises customer satisfaction and keeps on looking forward to the product excellence.
**Stainless Steel 316/316L Sheet and Plates** are widely utilized in industries that demand exceptional corrosion resistance and reliability. In marine applications, they find use in shipbuilding, seawater piping, and coastal structures. The chemical and petrochemical industries rely on them for process equipment, heat exchangers, and tanks that are exposed to harsh chemicals. The food and pharmaceutical sectors appreciate their hygienic processing capabilities due to their ease of cleaning and resistance to contamination. Additionally, they are employed in power generation, condensers, and architectural applications, making them a versatile and long-lasting choice for critical projects.
