Nakamura Stainless, a top-notch manufacturer and supplier based in Pulau Ujong, Singapore, has built a solid reputation for delivering high-quality stainless steel products designed for a variety of industrial uses. Among their impressive lineup, the **Stainless Steel 310/310S Sheet and Plates** stand out for their remarkable resistance to heat, oxidation, and corrosion. Crafted to perform in the toughest conditions, these sheets and plates blend durability with outstanding mechanical strength. Thanks to meticulous engineering and rigorous quality checks, Nakamura Stainless guarantees that their Stainless Steel 310/310S Sheet and Plates comply with international standards, ensuring reliability and a long lifespan in demanding industrial environments.
These sheets and plates are primarily made up of 24–26% chromium, 19–22% nickel, and low carbon (≤0.08% for 310S), along with small amounts of manganese, silicon, and phosphorus. The high levels of chromium and nickel provide excellent resistance to oxidation and scaling at temperatures up to 1100°C, while the lower carbon content in 310S helps reduce carbide precipitation during welding. In terms of mechanical properties, they boast a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. These characteristics contribute to their impressive toughness, thermal stability, and structural integrity in high-temperature applications.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Mn | Si | P | S | Cr | Ni | Fe | |
|---|---|---|---|---|---|---|---|---|
| 310 | 0.25 max | 2.0 max | 1.50 max | 0.045max | 0.03max | 24-26 | min: 8.0 max: 12.0 | Balance |
| 310S | 0.08 max | 2.00 max | 1.50 max | 0.045 | 0.03 | 24-26 | 19-22 | Balance |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX |
|---|---|---|---|---|
| 310 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% | – |
| 310S | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% | – |
Contact us to get a quick quote for your requirement.
Hot-rolled sheets of Stainless Steel 310 are corrosion-resistant and resistant to corrosion and have high temperature stability. Available in sizes of 1.5 mm up to 25 mm thick, dimensions vary with customer requirements and offer robust performance in high-temperature applications.

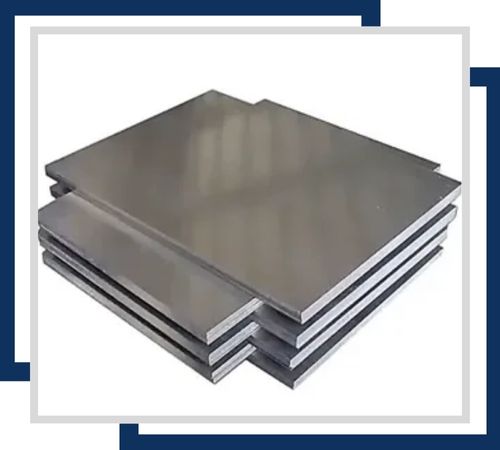

Available in gauges from 0.4 mm to 3 mm thickness, these have excellent corrosion resistance and improved surface finish. Suitable for applications which require tight tolerance and smoothness of the surfaces, these have precision and strength.
The Stainless Steel 310 chequered plates offer corrosion resistance with the added feature of slip resistance. The thickness varies from 2 mm to 12 mm. They are applied in floorings and industries for better traction.

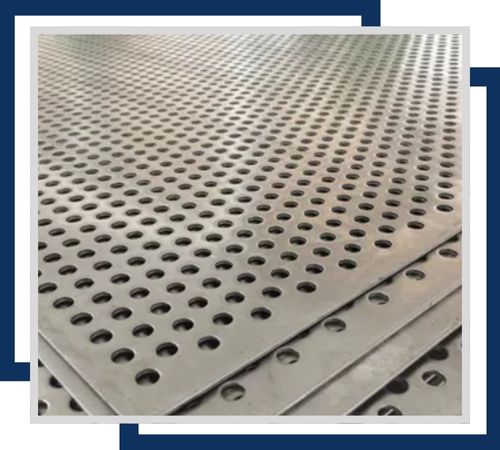

Stainless Steel 310 perforated sheets have available hole sizes and patterns that create aesthetic and practical benefits. Generally, thickness varies from 0.5 mm to 6 mm and finds application in filtration, ventilation, and decoration purposes.
The shim sheets are made of stainless steel 310S and are available in thickness ranging from 0.1 mm to 1 mm. The thin sheets produce exact gaps or spaces in mechanical assemblies for adjustment.
Stainless steel 310S polished plates combine corrosion resistance with high-quality finishes, both aesthetic and functional. They are available in 0.5 mm to 50 mm thickness and extensively used for decorative and high-end industrial applications.
Nakamura Stainless is providing a hassle-free experience to our esteemed customers by issuing a complete documentation set for all our high-grade Stainless Steel 310/310S Sheets and Plates. Documents such as Commercial Invoices, Packing Lists, Fumigation Certificates, Heat Treatment Charts, Quality Assurance Plans, NABL-approved Laboratory Test Reports accompany our products ensuring authenticity and superb quality. In addition, our Stainless Steel 310/310S Sheets and Plates are provided with a variety of test certificates, such as MTC in accordance with EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates, which reflect our commitment to customer satisfaction and our continuous pursuit of product excellence.
Stainless Steel 310/310S Sheet and Plates are commonly used in situations that require durability and resistance to extreme heat and corrosive environments. They find applications in furnace linings, heat exchangers, kilns, boilers, and thermal processing equipment. Industries such as petrochemical, power generation, and refining rely on them for managing hot gases, liquids, and corrosive chemicals. Their adaptability also makes them suitable for marine and structural projects, where strength and resistance are crucial. These sheets and plates deliver dependable performance, making them a go-to choice for industries facing tough conditions.
