Nakamura Stainless is a well-known manufacturer and supplier based in Pulau Ujong, Singapore, specializing in high-quality stainless steel solutions that meet international standards. Among their impressive lineup, **Stainless Steel 201 Sheet and Plates** stand out for their durability, affordability, and versatility. These sheets and plates boast excellent strength, moderate corrosion resistance, and good formability, making them ideal for both industrial and decorative uses. Nakamura Stainless is committed to delivering top-quality products, timely service, and a customer-centric approach, which has earned them a reputation as a reliable partner for various industries, including construction, food processing, automotive, and architecture that need dependable stainless steel materials.
**Stainless Steel 201 Sheet and Plates** are made up of 16–18% chromium, 3.5–5.5% nickel, and 5.5–7.5% manganese, with the remainder being iron and controlled carbon to enhance formability and toughness. Their mechanical properties feature a tensile strength of approximately 515–750 MPa, a yield strength of around 275 MPa, and an elongation of 35–40%. These sheets and plates provide good hardness, ductility, and wear resistance while still being weldable and machinable. While their corrosion resistance is moderate compared to higher nickel grades, they perform admirably in less aggressive environments, making them suitable for a variety of engineering and decorative applications.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | JIS, AISI, ASTM, GB, DIN, EN |
| Range | : | 1000/1219/1500/2000mm,etc |
| Conventional common size | : | 4 inch X 8 inch ,10 inch x 5 inch |
| Thickness | : | 0.2 mm to 20mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grades | : | SS 201 UNS S20100 |
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
| SS 201 | 0.15 max | 5.5 – 7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | 0.3 – 0.5 | – |
| Tensile strength (transverse at room temperature) | 685 MPa | 99400 psi |
| Tensile strength (longitudinal at room temperature) | 696 MPa | 101000 psi |
| Yield strength (transverse at room temperature) | 292 MPa | 42400 psi |
| Yield strength (longitudinal at room temperature) | 301 MPa | 43700 psi |
| Compressive yield strength | 365 MPa | 52900 psi |
| Elastic modulus | 197 GPa | 28573 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (longitudinal at room temperature) | 56% | 56% |
| Elongation at break (transverse at room temperature) | 62.50% | 62.50% |
| Hardness, Rockwell B (transverse at room temperature) | 85 | 85 |
| Hardness, Rockwell B (longitudinal at room temperature) | 85 | 85 |
Contact us to get a quick quote for your requirement.

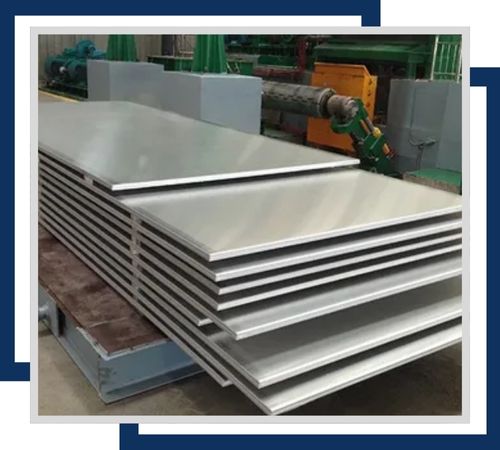

Stainless Steel 201 hot rolled plates are resistant to corrosion and are used in various structural applications. They are available in sizes from 6mm to 100mm thick, and can be ordered to any size.

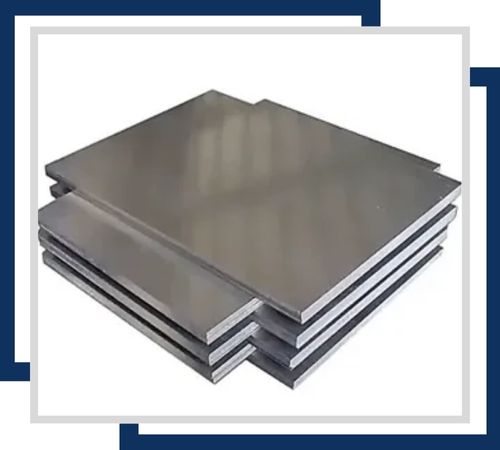

The stainless steel 201 cold rolled sheets offer excellent corrosion resistance and a smooth surface finish. They are available in the thickness range of 0.3mm to 3mm and widths ranging from 1000mm to 2000mm, thus applicable for various purposes.
Stainless Steel 201 chequered sheets are used for flooring and other high-traffic areas due to their improved slip resistance and durability. These sheets are available in thicknesses of 1mm to 6mm and standard sizes of 1000mm x 2000mm.
Stainless Steel 201 perforated sheets have outstanding corrosion resistance and find applications for purposes of ornamentation and function. They are also available with holes of various diameters and sizes, commonly within the range of 0.5mm to 6mm in thickness, and sizes from 1000mm x 2000mm.
Stainless Steel 201 shim plates possess good resistance against corrosion and accurate thickness for spacing and alignments. It is generally available in thickness ranging from 0.1mm to 5mm along with sizes up to 1000mm x 2000mm.
Stainless Steel 201 Polished Sheet and Plates have high-quality reflective finishes. It has good strength at high temperatures that offer abrasion and corrosion resistance in applications having processes.
Nakamura Stainless assures hassle-free delivery while giving detailed documents regarding high-quality Stainless Steel 201 Sheets and Plates. It issues a commercial invoice, a packing list, fumigation certificate, heat treatment chart, quality assurance plan, and an NABL-approved lab test report that verify the genuinity and exceptional quality of products and help generate trust in its valuable customers. In addition, our Stainless Steel 201 Sheets and Plates are offered with various test certificates, which include MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. The certifications show how we are completely customer-centric as well as strongly committed to quality products.
**Stainless Steel 201 Sheet and Plates** are commonly used in architectural frameworks, interior design, and construction projects due to their strength and aesthetic appeal. They also find applications in kitchenware, food processing equipment, transport systems, and furniture manufacturing, where moderate corrosion resistance is adequate. Their cost-effectiveness makes them a favored choice over 304-grade stainless steel in situations that require durability and formability. Additionally, they are utilized in railway coaches, storage tanks, and light chemical processing, providing reliable performance across both industrial and commercial sectors.
